H-post support bracket 121mm
SKU 21195121
+ Available in hot-dip galvanizing or stainless steel
+ Available up to 8mm steel thickness
+ Extremely high thermal galvanisation of 60 microns
+ Prevents wood rot, wooden poles are fixed above the ground, no contact with rainwater and moisture
+ Carriage bolts to fix wooden posts available as an option
Delivery in 5-21 days
Product description
H-Post Support Bracket 121mm 600mm Hot-Dip Galvanized
The H-post support bracket 121mm (121x600x60x5.5mm) is a heavy-duty steel post holder designed for secure installation of large wooden fence posts in concrete. Its reinforced H-shaped structure provides maximum strength, stability and load-bearing capacity for demanding outdoor applications.
The hot-dip galvanized finish ensures long-lasting protection against rust, corrosion and harsh weather conditions.
Advantages of the H-Post Support Bracket
- Extra strong H-shaped steel construction
- Hot-dip galvanized for maximum corrosion resistance
- Designed for installation in concrete
- Suitable for 121mm wooden fence posts
- 5.5mm thick steel for heavy-duty performance
- Excellent stability for permanent fencing systems

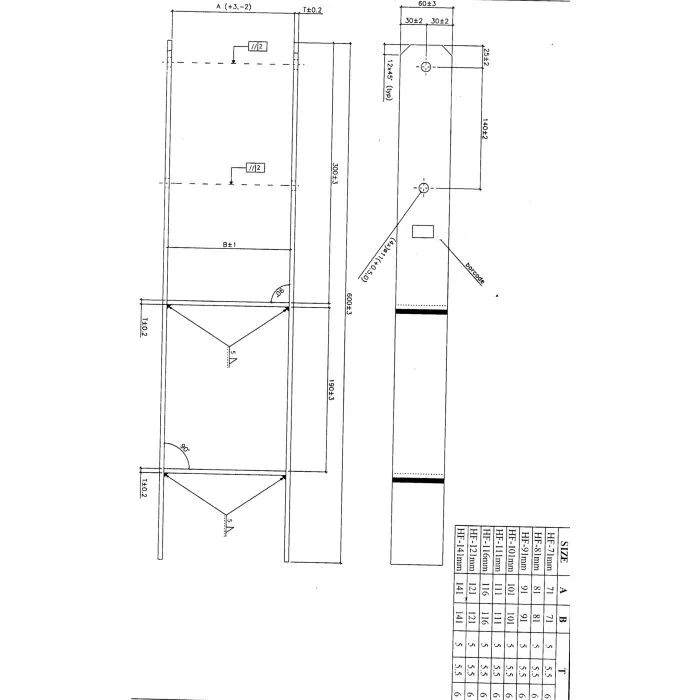

Technical Specifications
- Product: H-post support bracket / post base
- Dimensions: 121x600x60x5.5mm
- Material: Steel
- Finish: Hot-dip galvanized
- Top internal size: 121mm
- Installation type: In concrete
- Application: Garden fencing and heavy-duty structural support
Applications

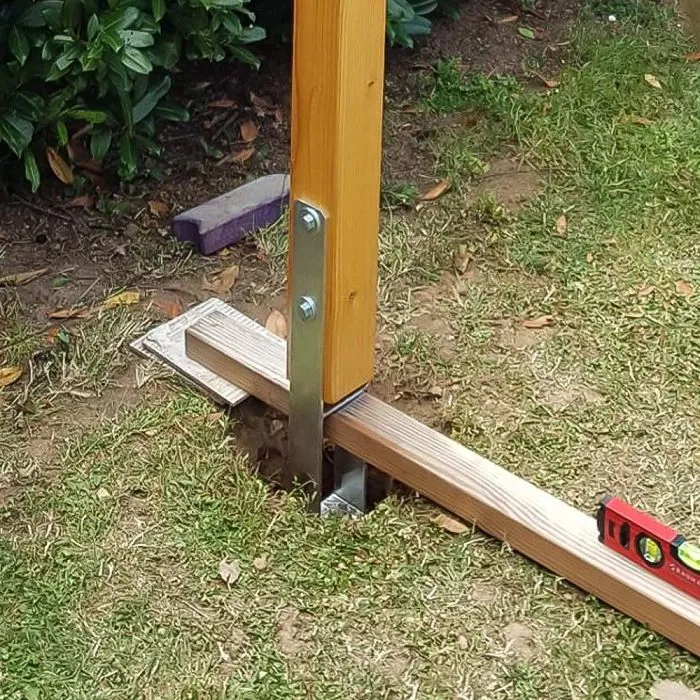

This H-post support bracket is suitable for securing large wooden posts in concrete for garden fencing, boundary structures, pergolas and other heavy outdoor constructions requiring maximum stability and durability.
Installation Guide
- Dig a hole for the concrete foundation.
- Position the H-post support bracket correctly.
- Pour concrete and ensure alignment.
- Allow concrete to fully cure.
- Insert and secure the wooden post into the bracket.
Related Products
Complete your fencing project with matching components such as wooden fence posts, fixings and fence hardware, wooden fences, natural privacy fences.
FAQ – Frequently Asked Questions
What makes this bracket extra strong?
The 5.5mm thick steel and reinforced H-shaped design provide maximum load capacity and stability.
Is it suitable for concrete installation?
Yes, it is specifically designed for embedding in concrete.
What post size fits this model?
It is suitable for 121mm wooden fence posts.
Is it suitable for very heavy structures?
Yes, it is ideal for the most demanding heavy-duty fencing and construction applications.
