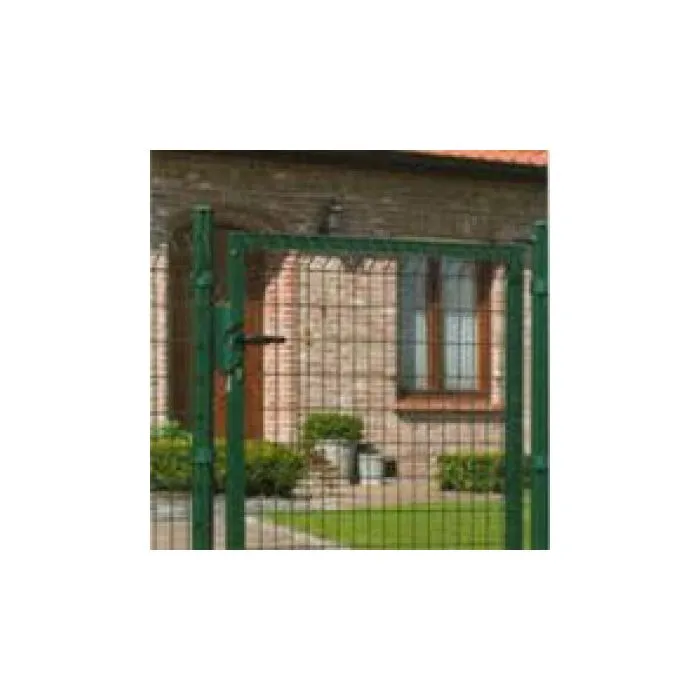

Garden gate wire panel 100x103cm green

Green Steel Garden Gate 100x103cm for Wire Fencing

This green steel garden gate measuring 100x103cm is designed for use with 3D wire fencing. It combines a stable steel frame with a durable finish, making it a practical access point for gardens and other outdoor areas. The gate is made from hot-dip galvanised steel in accordance with EN ISO 1461 and finished with a polyester powder coating. It features a stainless steel Locinox lock and reversible hinges that can rotate through 180 degrees. The gate is suitable for combining with a matching hot-dip galvanised double wire fence panel system.

Key Benefits

• Suitable for 3D wire fencing systems
• Green polyester powder-coated finish
• Hot-dip galvanised steel in accordance with EN ISO 1461
• Stable frame made from 40x40x2mm square steel tubing
• Stainless steel Locinox lock
• Reversible hinges with a 180-degree rotation
• Gate infill with a 50x200mm mesh size
• Designed for durable outdoor use

Product Description

This green steel garden gate is a practical choice for creating an access point in a 3D wire fence. Its dimensions of 100cm wide and 103cm high make it suitable for a range of garden fencing applications where these measurements meet your requirements.

The gate frame is constructed from 40x40x2mm square steel tubing, providing a stable structure. The infill consists of standard 3D wire fencing with a mesh size of 50x200mm. This design allows the gate to complement a matching wire fence system.

For protection against outdoor conditions, the steel is hot-dip galvanised in accordance with EN ISO 1461 and finished with a polyester powder coating. The combination of galvanising and powder coating provides a durable surface suitable for outdoor use. The green finish helps the gate blend in with garden surroundings and green-coated fencing.

The gate is fitted with a stainless steel Locinox lock. Its reversible hinges can rotate through 180 degrees, giving flexibility when determining the direction in which the gate opens. Check the intended installation position and available clearance before fitting the gate.

For a coordinated fence installation, combine the gate with matching wire fence posts. Suitable wire fence accessories can also be useful when completing the surrounding fence system. If you prefer a coated finish for the fence panels, see the available powder-coated double wire fence panels.

Technical Specifications

Installation Advice

Before installation, check that the gate dimensions are suitable for the intended opening and that there is sufficient space for the gate to rotate. Position the supporting posts securely and ensure that they are aligned correctly. Fit the gate according to the supplied installation instructions and check that the hinges and Locinox lock operate properly after installation.

For the best overall result, choose compatible fence panels, posts and accessories from the same type of fencing system. Always check the dimensions and compatibility of the selected components before assembly.

Frequently Asked Questions

1. What is this garden gate suitable for?

This gate is designed for use with 3D wire fencing systems.

2. What are the dimensions of the gate?

The gate is 100cm wide and 103cm high.

3. What is the gate frame made of?

The frame is made from square steel tubing measuring 40x40x2mm.

4. Is the steel protected against corrosion?

The steel is hot-dip galvanised in accordance with EN ISO 1461 and finished with a polyester powder coating.

5. What type of lock does the gate have?

The gate is fitted with a stainless steel Locinox lock.

6. Can the gate open in either direction?

The hinges are reversible and can rotate through 180 degrees. Check the installation requirements and available clearance when choosing the opening direction.

7. What is the mesh size?

The standard 3D wire infill has a mesh size of 50x200mm.

8. Which components can I combine with this gate?

You can combine the gate with compatible wire fence posts, wire fence accessories and matching double wire fence panels.

Combine With

• Hot-dip galvanised double wire fence panels
• Powder-coated double wire fence panels
• Wire fence posts
• Wire fence accessories
