Double Wire Fence Panel 143x251cm

Double Wire Fence Panel 143x251cm Hot-Dip Galvanised

The double wire fence panel 143x251cm is a practical solution for creating a clear boundary around gardens, properties and other outdoor areas. The panel is 143cm high and has a standard width of 251cm, with a mesh size of 50 x 200mm. The double wire construction consists of two horizontal wire rods of Ø6mm and one vertical wire rod of Ø5mm. The panel is hot-dip galvanised according to EN ISO 1461 and is supplied as a complete set including the mesh panel, post and fixing materials.

Benefits of the double wire fence panel 143x251cm

• Height: 143cm
• Standard width: 251cm
• Mesh size: 50 x 200mm
• 2 horizontal wire rods of Ø6mm
• 1 vertical wire rod of Ø5mm
• Hot-dip galvanised according to EN ISO 1461
• Complete set with mesh panel, post and fixing materials
• 25-year warranty

Complete double wire fence set

This double wire fence panel is supplied as a complete set. The set consists of the mesh panel, a matching post and fixing materials. This gives you the main components required for installing the fence in one set. With a standard width of 251cm, several panels can be installed alongside each other to create a longer boundary.

Discover the complete range of double wire fence panels. Matching wire fence posts and wire fence accessories are also available.

Hot-dip galvanised double wire fence panel

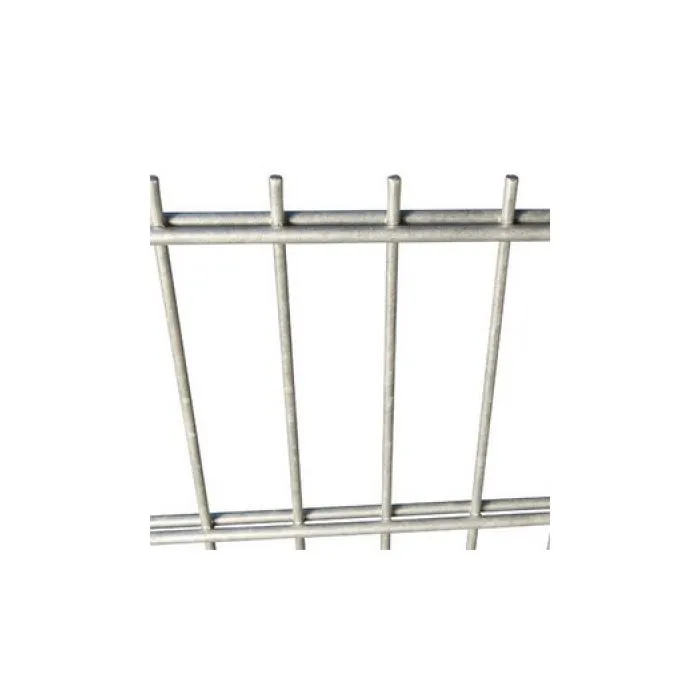

The panel is hot-dip galvanised according to EN ISO 1461. The 143cm-high panel has a standard width of 251cm and a mesh size of 50 x 200mm. The wire construction consists of two horizontal Ø6mm wire rods and one vertical Ø5mm wire rod.

The standard colours available for the range are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request. Other formats, mesh sizes and lengths can also be supplied on request.

Technical specifications

Choosing the right fence height

With a height of 143cm, this double wire fence panel provides a practical way to define a garden or property without choosing one of the higher fence options. The range is available in different heights from 63 to 243cm, allowing you to select a suitable height for your project.

Other formats, mesh sizes and lengths are available on request. This allows the fencing system to be adapted to different projects and requirements.

How to install a double wire fence panel

1. Determine the desired fence line and mark the positions of the posts.
2. Allow for the standard panel width of 251cm.
3. Install the posts securely according to the chosen installation method.
4. Position the 143cm-high panel between the posts.
5. Secure the panel using the appropriate fixing materials.
6. Check the alignment and height of the complete fence before finishing the installation.

Frequently asked questions

What are the dimensions of this double wire fence panel?

The panel is 143cm high and 251cm wide. The width of 251cm is the standard panel width.

What is the mesh size?

The mesh size is 50 x 200mm. The panel has two horizontal Ø6mm wire rods and one vertical Ø5mm wire rod.

Is the double wire fence panel hot-dip galvanised?

Yes, the panel is hot-dip galvanised according to EN ISO 1461. This is the specified finish for this product.

Is the double wire fence panel supplied as a complete set?

Yes, the double wire fence panel is supplied as a complete set. The set consists of the mesh panel, a post and fixing materials.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Are other fence heights available?

Yes, heights from 63 to 243cm are available. Other formats, mesh sizes and lengths can also be requested.

Can I add a gate to the fence?

Yes, matching fence gates are available as an option. This allows you to create a practical access point within your double wire fence.

Complete your double wire fencing system

For a complete fencing system, combine the double wire fence panel 143x251cm with suitable wire fence posts and wire fence accessories. A matching fence gate can also be added to provide access within the enclosed area.

Double Wire Fence Panel 143x251cm for your fencing project

The double wire fence panel 143x251cm combines a height of 143cm with a standard width of 251cm and a mesh size of 50 x 200mm. The hot-dip galvanised finish according to EN ISO 1461 and the complete set with post and fixing materials provide the main components needed for your fencing project. With different available heights, colours and configurations, the double wire fence system can be adapted to your specific requirements.
