Double Wire Fence Panel 123x251cm

Double Wire Fence Panel 123x251cm Hot-Dip Galvanised

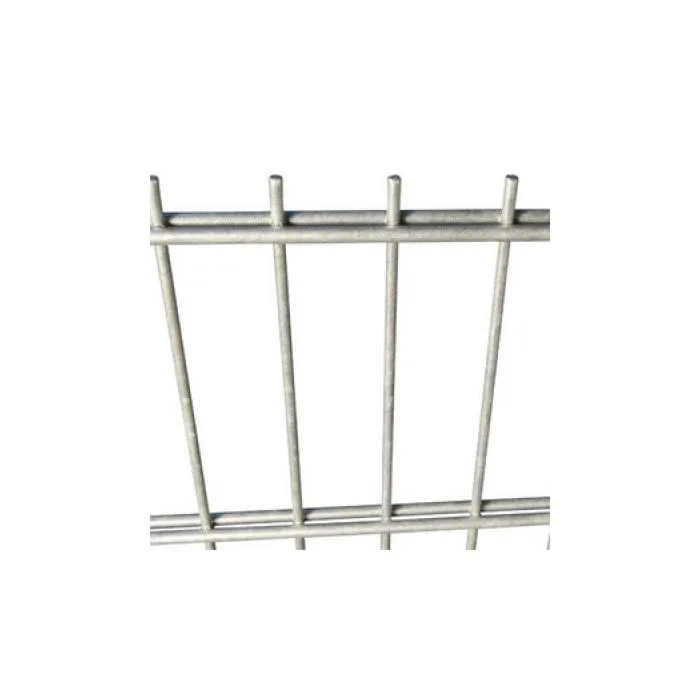

The double wire fence panel 123x251cm is a practical and durable solution for creating a neat, stable fence around a garden, property or other outdoor area. The panel has a standard width of 251cm and a height of 123cm, with a mesh size of 50 x 200mm. The double wire construction consists of two horizontal 6mm wire rods and one vertical 5mm wire rod. The panel is hot-dip galvanised according to EN ISO 1461 and is supplied as a complete set including the mesh panel, post and fixing materials.

Key benefits of the double wire fence panel 123x251cm

• Height: 123cm
• Standard width: 251cm
• Mesh size: 50 x 200mm
• Two horizontal wire rods of Ø6mm
• One vertical wire rod of Ø5mm
• Hot-dip galvanised according to EN ISO 1461
• Complete set with panel, post and fixing materials
• 25-year warranty

Complete double wire fence set

This double wire fence panel is supplied as a complete set, consisting of the mesh panel, a matching post and the required fixing materials. This makes it easier to select the basic components needed for installation. With a standard width of 251cm, multiple panels can be combined to create a continuous fence over longer distances.

For the complete range, see our double wire fence panels. Matching wire fence posts and wire fence accessories are also available.

Hot-dip galvanised double wire fence panel

The panel is hot-dip galvanised according to EN ISO 1461. This treatment is specified for the supplied panel and provides a galvanised finish suitable for outdoor fencing applications. The standard colours available for the range are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours can be requested.

Technical specifications

Choosing the right fence height

The 123cm height offers a practical balance between a clear boundary and an open appearance. The double wire fence range is available in several heights from 63cm to 243cm. This allows you to select a panel according to the desired fence height and application. Other formats, mesh sizes and lengths are available on request.

For additional access to your enclosed area, a matching wire fence gate can be added to the fencing system.

How to install a double wire fence panel

1. Determine the required fence line and mark the positions of the posts.
2. Maintain the correct spacing for the 251cm-wide panels.
3. Install the posts securely according to the chosen installation method.
4. Position the 123cm-high double wire panels between the posts.
5. Secure the panels using the appropriate fixing materials.
6. Check the alignment and height of the complete fence before finishing the installation.

Frequently asked questions

What are the dimensions of this double wire fence panel?

The panel measures 123cm high and 251cm wide. This is the standard panel width for this product.

What is the mesh size?

The mesh size is 50 x 200mm. The panel has two horizontal Ø6mm wire rods and one vertical Ø5mm wire rod.

Is the double wire fence panel galvanised?

Yes, the panel is hot-dip galvanised according to EN ISO 1461. This gives the panel its specified galvanised finish.

Is the panel supplied as a complete set?

Yes, the double wire fence panel is supplied as a complete set. The set consists of the mesh panel, post and fixing materials.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours can be requested.

Are other fence heights available?

Yes, the range is available in heights from 63cm to 243cm. Other formats, mesh sizes and lengths are also available on request.

Can I add a gate to the fence?

Yes, matching garden gates are available as an option. This allows you to create a complete access solution within the double wire fence.

Complete your double wire fencing system

With its 123cm height, 251cm standard width, 50 x 200mm mesh and hot-dip galvanised finish, this double wire fence panel provides a straightforward basis for a complete fencing system. Combine the panels with suitable wire fence posts, fixing accessories and a matching fence gate to create a complete and neatly finished enclosure.
