Double Wire Fence Panel 103x251cm

Double Wire Fence Panel 103x251cm Hot-Dip Galvanised

The double wire fence panel 103x251cm is a practical fencing solution for gardens, boundaries and other outdoor areas. The panel has a width of 251cm and a height of 103cm, with a mesh size of 50x200mm. The double wire construction consists of two horizontal wire rods of 6mm and one vertical wire rod of 5mm. The panels are hot-dip galvanised according to EN ISO 1461 and are supplied as a complete set with a mesh panel, post and fixing materials.

Key benefits of the double wire fence panel 103x251cm

• Width of 251cm and height of 103cm
• Complete set including mesh panel, post and fixing materials
• Hot-dip galvanised according to EN ISO 1461
• Mesh size of 50x200mm
• Double horizontal wire rods of 6mm
• Vertical wire rods of 5mm
• Available in several standard RAL colours
• 25-year warranty

Double wire fence panel with 50x200mm mesh

The 103x251cm double wire fence panel combines a practical format with a clearly defined wire mesh structure. The 50x200mm mesh provides an open fence design while creating a continuous boundary around your garden or property.

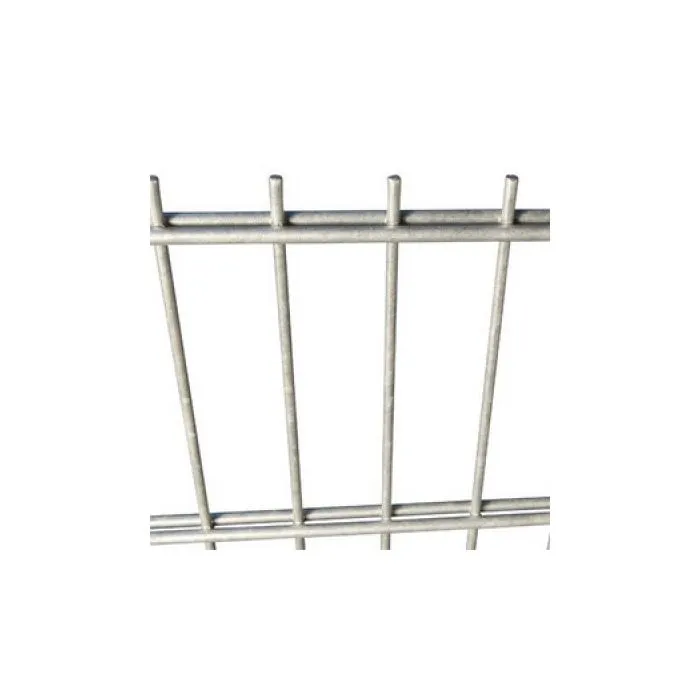

The double wire construction consists of two horizontal wires with a diameter of 6mm and one vertical wire with a diameter of 5mm. This configuration gives the panel its characteristic double wire appearance and makes it suitable for use as part of a complete wire fencing system.

Hot-dip galvanised according to EN ISO 1461

The double wire fence panel is hot-dip galvanised according to EN ISO 1461. Galvanisation is applied to provide protection to the steel against corrosion, making the panel suitable for outdoor fencing applications.

For a complete fencing system, matching double wire fence posts are available. The corresponding wire fence accessories can be used to complete the installation.

Complete double wire fencing set

The double wire fence panels are sold as a complete set consisting of the mesh panel, post and mounting material. With a standard width of 251cm, the panels can be combined to create a continuous fence line.

When planning your fence, take the total length of the boundary into account and determine the required number of panels and posts. For a suitable installation, make sure that the selected posts and fixing materials correspond to the fencing system.

Available heights, colours and formats

The 103cm high version is part of a wider range of double wire fence panels. Heights from 63cm up to 243cm are available. This allows you to choose a panel height that matches the intended application and the appearance of your fence.

In addition to the standard colours RAL 6005, RAL 6009, RAL 7016 and RAL 9005, other colours are available on request. Other formats, mesh sizes and lengths can also be requested.

Combine the fence panel with matching components

A complete double wire fence consists of more than just the panels. For a suitable installation, you can combine the panels with matching fence posts and fence accessories. The wire fence panel posts are another option within the wire panel system.

Do you need an entrance in the fence? Matching garden gates for wire fencing are available as an optional addition.

How to install a double wire fence panel

1. Measure the total length of the intended fence line.
2. Mark the positions of the posts, including corners, ends and any gate openings.
3. Determine the required number of 251cm wide panels and matching posts.
4. Install the posts according to the requirements of the selected fencing system.
5. Check the posts carefully with a spirit level to ensure correct alignment.
6. Attach the double wire fence panels to the posts using the appropriate fixing materials.
7. Check the alignment and height of the complete fence before finishing the installation.
8. If required, install the matching garden gate as the final part of the fencing system.

Frequently asked questions

What are the dimensions of the double wire fence panel?

The double wire fence panel measures 103cm high and 251cm wide.

What is the mesh size?

The mesh size is 50 x 200mm.

How are the double wire fence panels finished?

The panels are hot-dip galvanised according to EN ISO 1461.

What wire diameters are used?

The panel has two horizontal wire rods of Ø6mm and one vertical wire rod of Ø5mm.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Are other heights available?

Yes, double wire fence panels are available in heights ranging from 63cm to 243cm.

Can I add a garden gate?

Yes, matching garden gates are available as an optional addition to the double wire fencing system.

Are other formats available?

Yes, other formats, mesh sizes and lengths are available on request.

Double wire fence panel 103x251cm from Intergard

The 103x251cm double wire fence panel is a complete fencing solution with a 50x200mm mesh, hot-dip galvanised finish and matching components. With different heights, standard RAL colours and optional garden gates available, the system can be adapted to different fencing projects. The panel comes with a 25-year warranty and is supplied as a complete set with post and mounting materials.
