Wire mesh fence gate 83x100cm

Metal Garden Gate 83x100 cm Powder Coated for Double Wire Fencing

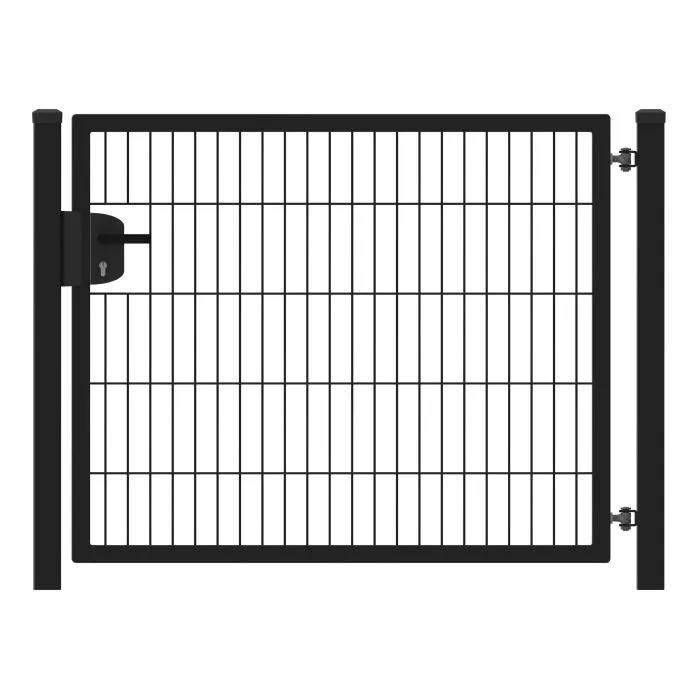

This metal garden gate 83x100 cm is a practical pedestrian gate for gardens, properties and other outdoor areas with double wire fencing. The gate features a stable frame made from square steel tube and is fitted with a double wire panel infill in an 8/6/8 configuration with a mesh size of 50 x 200 mm. It is hot-dip galvanised in accordance with EN ISO 1461 and finished with a polyester powder coating. The reversible hinge can be rotated through 180°, allowing the gate to be installed according to the desired opening direction. The gate is also equipped with an RVS-Locinox lock.

Key benefits of this metal garden gate

• Dimensions: 83 x 100 cm (H x W)
• Designed for double wire fencing
• Stable square steel tube frame measuring 40 x 40 x 2 mm
• Double wire panel infill in an 8/6/8 configuration
• Mesh size of 50 x 200 mm
• Reversible hinge with 180° opening
• RVS-Locinox lock
• Hot-dip galvanised according to EN ISO 1461 and polyester powder coated
• Available in standard RAL colours 6005, 6009, 7016 and 9005
• 25-year warranty

Metal garden gate for double wire fencing

A garden gate provides convenient pedestrian access to a garden or property enclosed with double wire fencing. This metal garden gate 83x100 cm is designed specifically for use with double wire fence panels. The matching double wire infill creates a consistent appearance between the gate and the adjoining fence.

The gate can be used as a standalone product or as part of a complete fencing system. With a width of 100 cm, it provides a practical pedestrian entrance. The gate has a height of 83 cm.

Stable square steel frame

The frame of the garden gate is manufactured from square steel tube measuring 40 x 40 x 2 mm. The square profile construction provides the basis for the integrated double wire panel infill.

The infill consists of a double wire panel in an 8/6/8 configuration with a mesh size of 50 x 200 mm. This allows the gate to match the design and construction of a double wire fence system.

Hot-dip galvanised and powder coated

The metal garden gate is hot-dip galvanised according to EN ISO 1461 and additionally finished with a polyester powder coating. The powder-coated finish provides a coloured finish for the gate.

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request. This makes it possible to coordinate the gate with the colour of the double wire fence panels.

Technical specifications

RVS-Locinox lock and reversible hinge

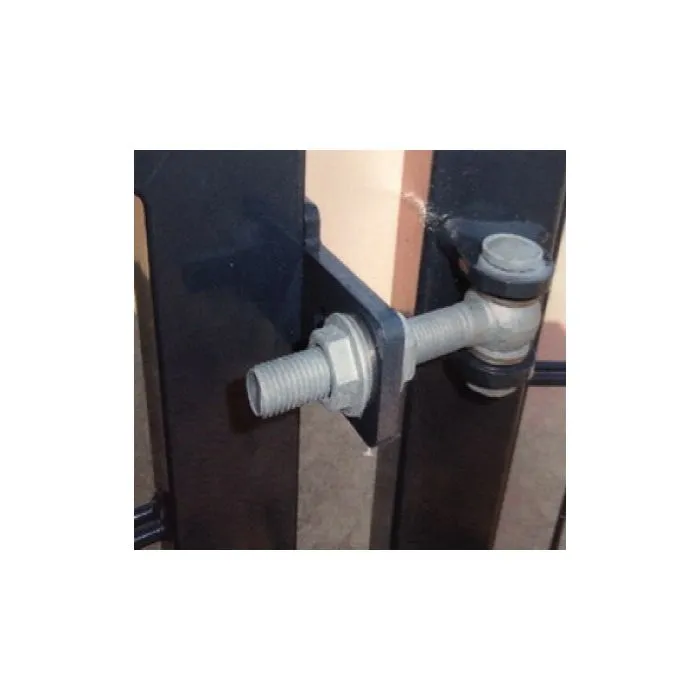

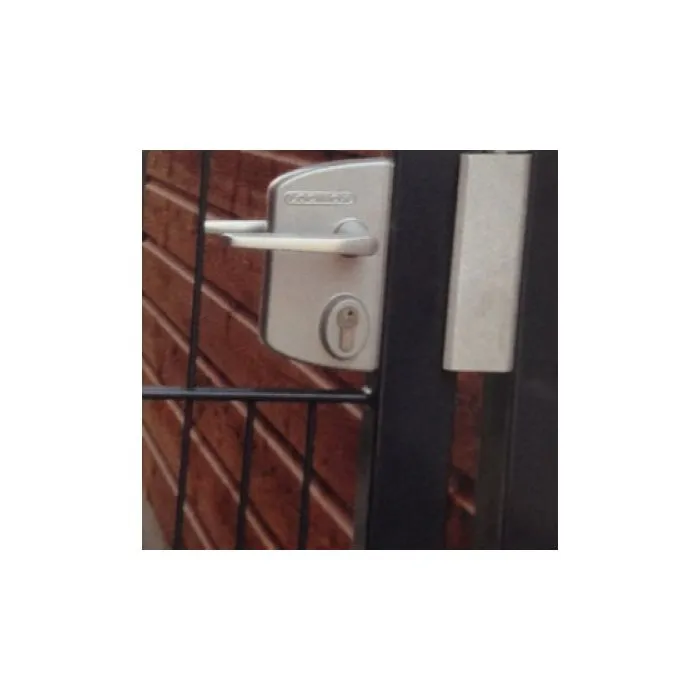

The garden gate is fitted with an RVS-Locinox lock. The reversible hinge can be adapted to the installation and allows the gate to rotate through 180°. This provides flexibility when determining the desired opening direction during installation.

Combine the gate with double wire fencing

For a complete and uniform fencing system, combine the garden gate with matching powder-coated double wire fence panels. The matching panel infill creates a consistent appearance between the gate and the rest of the fence.

For the fence installation, you can use suitable wire fence posts. Matching wire fence accessories are also available for completing the fencing system.

How to install the metal garden gate

Before installation, determine the desired position and opening direction of the gate. The gate posts should be positioned and aligned correctly before mounting the gate. After installation, check the hinge movement and make sure that the lock operates correctly.

1. Determine the position of the garden gate and the desired opening direction.
2. Install and carefully align the appropriate gate posts.
3. Attach the gate to the posts using suitable fixing materials.
4. Adjust the reversible hinge and check the 180° opening.
5. Check that the RVS-Locinox lock closes correctly.
6. Install the adjoining double wire fence panels to complete the fence.

Applications

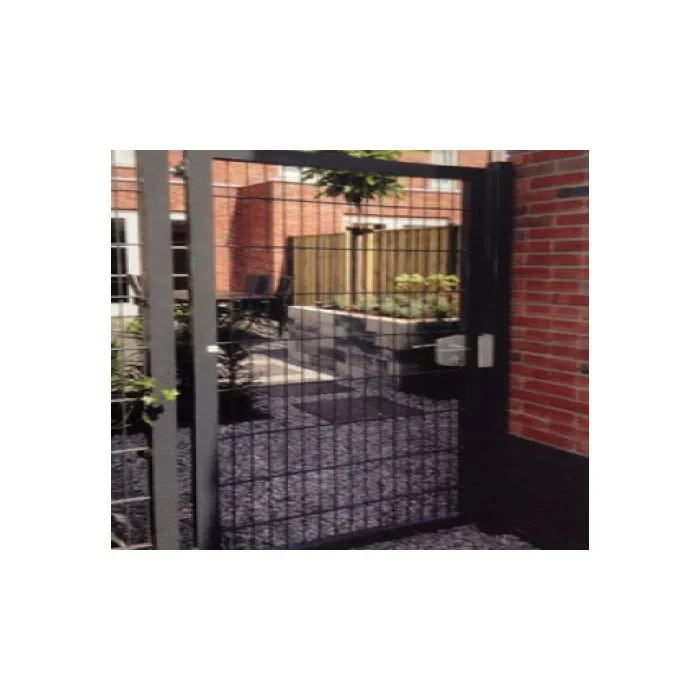

This metal garden gate 83x100 cm is suitable for different applications where a separate pedestrian entrance is required in a double wire fence. It can be used for gardens, properties and other outdoor areas.

The gate can be installed as a standalone element or incorporated into a complete fencing system with double wire panels, posts and suitable accessories.

Complete your fencing system

With this metal garden gate 83x100 cm, you can create a practical pedestrian entrance in a double wire fence. Combine the gate with matching panels, posts and accessories to create a complete and uniform fencing system.

For other gate options, view the range of fence gates.

Frequently asked questions

What are the dimensions of the metal garden gate?

The garden gate measures 83 cm high and 100 cm wide.

Is this garden gate suitable for double wire fencing?

Yes, the garden gate is designed for double wire fencing and features an 8/6/8 double wire panel infill.

What is the mesh size of the gate infill?

The double wire panel infill has a mesh size of 50 x 200 mm.

What is the frame made of?

The frame is made from square steel tube measuring 40 x 40 x 2 mm.

Is the garden gate hot-dip galvanised?

Yes, the garden gate is hot-dip galvanised according to EN ISO 1461 and additionally finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Does the garden gate include a lock?

Yes, the garden gate is fitted with an RVS-Locinox lock.

Can the opening direction be changed?

Yes, the hinge is reversible and can rotate through 180°, allowing the desired opening direction to be taken into account during installation.

How long is the warranty?

The garden gate comes with a 25-year warranty.

Metal garden gate 83x100 cm powder coated

This metal garden gate 83x100 cm is a practical pedestrian gate for double wire fencing. It features a square steel tube frame, an 8/6/8 double wire panel infill, an RVS-Locinox lock and a reversible hinge with 180° rotation. The gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. It is available in several standard RAL colours and can be combined with matching double wire fence panels, posts and accessories to create a complete fencing system.
