Wire mesh fence gate 83x100cm

Metal Garden Gate 83x100 cm Hot-Dip Galvanised for Double Wire Fencing

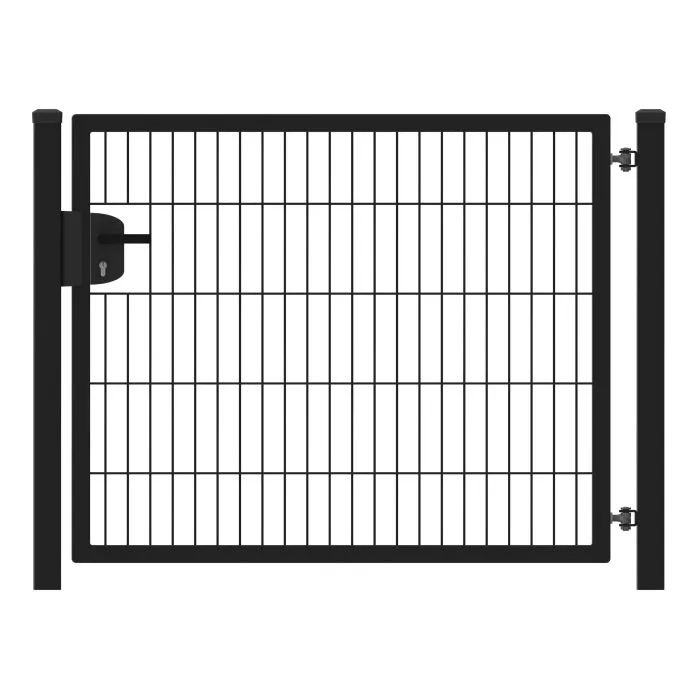

This metal garden gate 83x100 cm is designed as a pedestrian gate for double wire fencing and provides a practical and durable access point for gardens, properties and other outdoor areas. The gate features a stable square steel tube frame with a double wire panel infill and is hot-dip galvanised in accordance with EN ISO 1461. The standard dimensions are 83 cm high and 100 cm wide. The gate is supplied with an RVS-Locinox lock and a reversible hinge that can be opened through 180°. It is available as a standalone gate or as part of a complete double wire fencing system.

Advantages of this metal garden gate

• Metal garden gate measuring 83x100 cm (H x W)
• Suitable for double wire fencing
• Hot-dip galvanised according to EN ISO 1461
• Stable square steel tube frame measuring 40x40x2 mm
• Double wire panel infill 8/6/8 with 50x200 mm mesh
• Equipped with an RVS-Locinox lock
• Reversible hinge with 180° opening
• 25-year warranty

Metal garden gate for double wire fencing

This metal garden gate is specially designed to match double wire fence panels. With its 83x100 cm dimensions, it provides a convenient pedestrian entrance without requiring a wider driveway gate. The integrated double wire panel infill has a mesh size of 50x200 mm and is made in a 8/6/8 wire configuration.

The gate can be used for gardens, residential properties, commercial premises and other areas where a separate pedestrian entrance is required. Thanks to the matching design, it can be combined with double wire fence panels to create a consistent and practical fencing system.

Stable steel frame

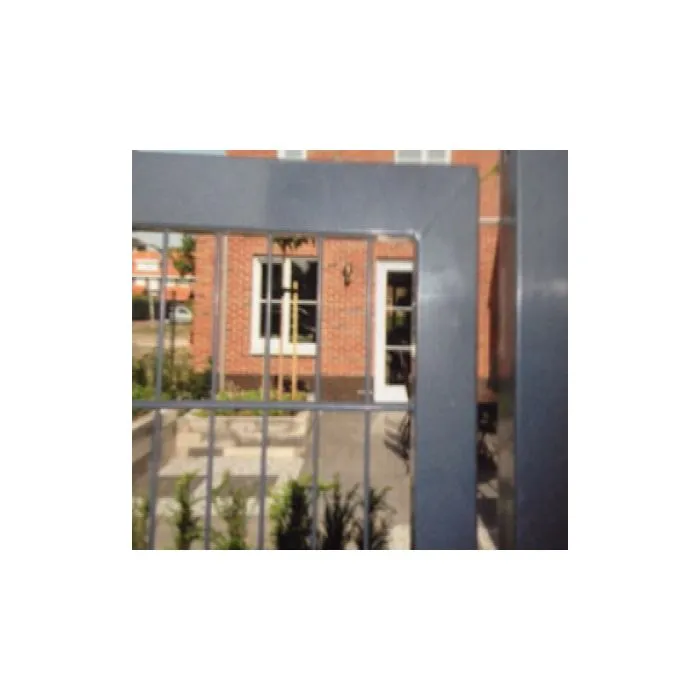

The frame is manufactured from square steel tube measuring 40x40x2 mm. This construction provides a stable framework for the double wire panel infill. The gate combines a functional pedestrian entrance with the appearance of a metal panel fence, making it suitable for a wide range of fencing applications.

The 83 cm height and 100 cm width provide a practical format for everyday pedestrian access. The gate can be installed as part of a new fence or used to extend an existing double wire fencing system.

Hot-dip galvanised finish

The gate is hot-dip galvanised according to EN ISO 1461. This galvanising process provides a protective zinc coating to the steel. A polyester powder-coated version is also available for applications where a coloured finish is preferred.

Standard colours include RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request. This allows the gate to be matched to different fence colours and outdoor surroundings.

Technical specifications

RVS-Locinox lock and reversible hinge

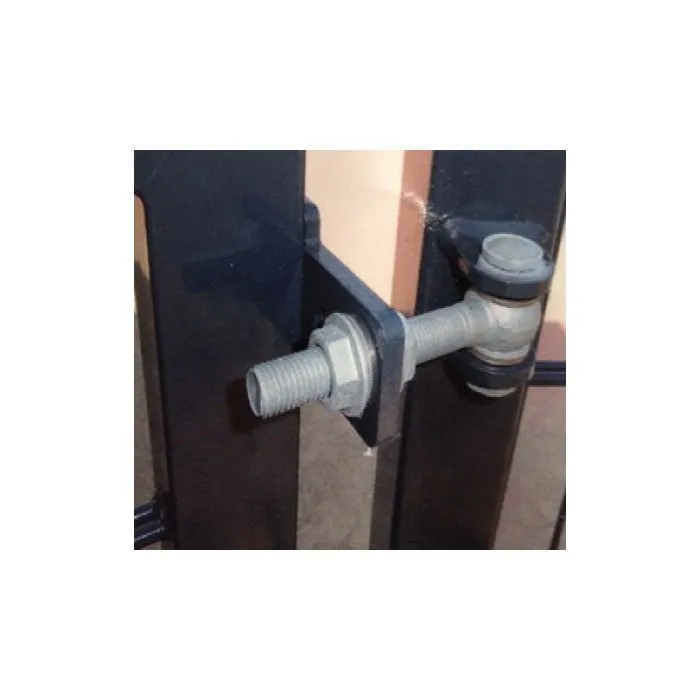

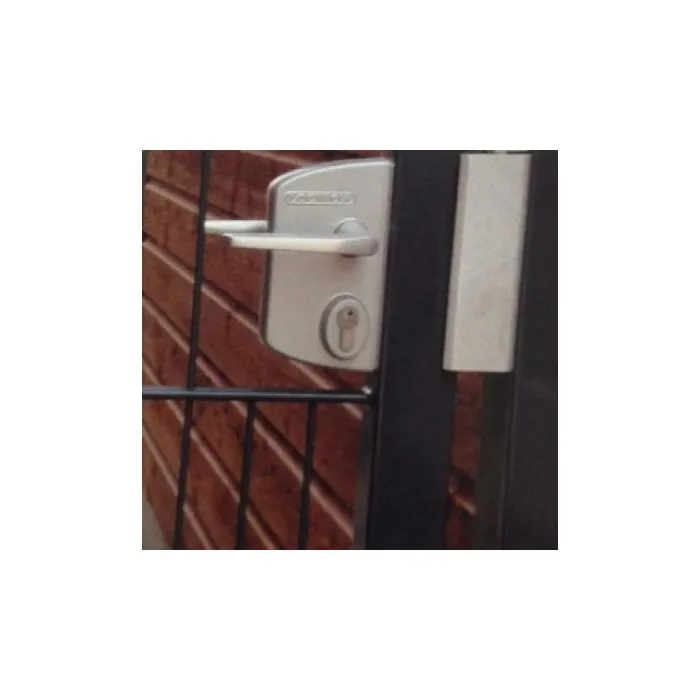

The gate is fitted with an RVS-Locinox lock for convenient access. The reversible hinge can be configured to suit the installation and allows the gate to open through 180°. This makes the gate suitable for different layouts and helps simplify installation according to the direction of access required.

Combine the gate with double wire fencing

For a complete fencing system, combine the gate with matching double wire fence panels and suitable posts. You can find wire fence posts for constructing the fence and wire fence accessories for the installation and fixing of the panels.

For larger fencing systems, the gate can also be integrated with wire fence panel posts. This creates a consistent appearance between the fencing and the pedestrian entrance.

Installation of the metal garden gate

Before installation, determine the desired position and opening direction of the gate. The gate should be installed with suitable posts and securely fixed according to the fencing system. Make sure that the posts are correctly positioned and aligned before mounting the gate and adjusting the hinges.

1. Determine the position and opening direction of the gate.
2. Install and align the appropriate gate posts.
3. Mount the gate frame to the posts using the supplied or suitable fixing materials.
4. Adjust the reversible hinges and check the 180° opening.
5. Check that the RVS-Locinox lock operates correctly.
6. Connect the surrounding double wire fence panels to complete the fencing system.

Applications

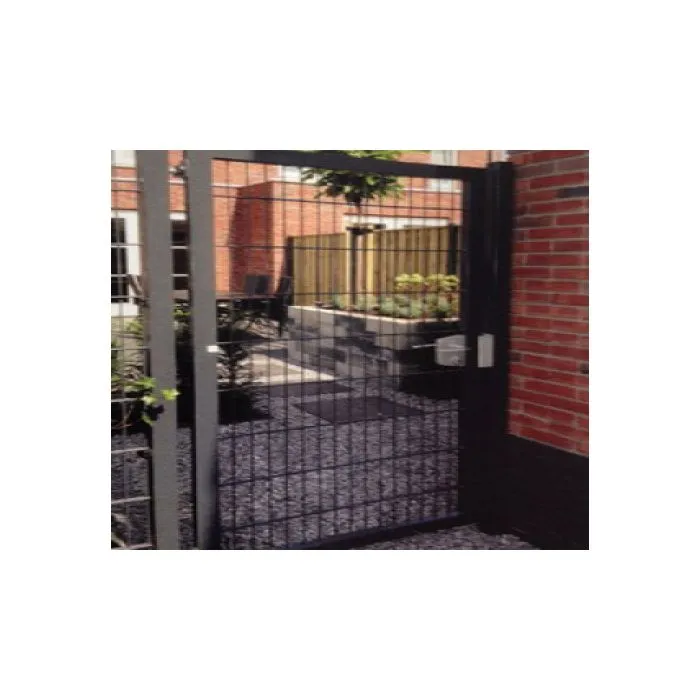

This 83x100 cm metal garden gate is suitable for gardens, residential properties, commercial areas, allotments and other outdoor spaces requiring a separate pedestrian entrance. The compact format is particularly practical where regular pedestrian access is required without installing a wider gate.

The gate can be used with new double wire fencing or added to an existing system where the dimensions and configuration are suitable.

Complete your fencing system

Combine this metal garden gate 83x100 cm with matching double wire fence panels, posts and accessories to create a complete and uniform fencing system. For alternative gate solutions, view the range of fence gates.

Frequently asked questions

What are the dimensions of the metal garden gate?

The gate measures 83 cm high and 100 cm wide.

Is this gate suitable for double wire fencing?

Yes, the gate is specifically designed for use with double wire fencing and features matching 8/6/8 double wire panel infill.

What is the mesh size of the gate infill?

The double wire panel infill has a mesh size of 50x200 mm.

What are the frame dimensions?

The gate frame is made from square steel tube measuring 40x40x2 mm.

Is the gate hot-dip galvanised?

Yes, the gate is hot-dip galvanised according to EN ISO 1461. A polyester powder-coated version is also available.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Does the gate have a lock?

Yes, the gate is supplied with an RVS-Locinox lock.

How long is the warranty?

The product comes with a 25-year warranty.

Metal garden gate 83x100 cm

With its 83x100 cm format, hot-dip galvanised steel construction, double wire panel infill and RVS-Locinox lock, this metal garden gate provides a practical pedestrian entrance for double wire fencing. Combine the gate with matching panels, posts and accessories to create a complete fencing system for your garden or property.
