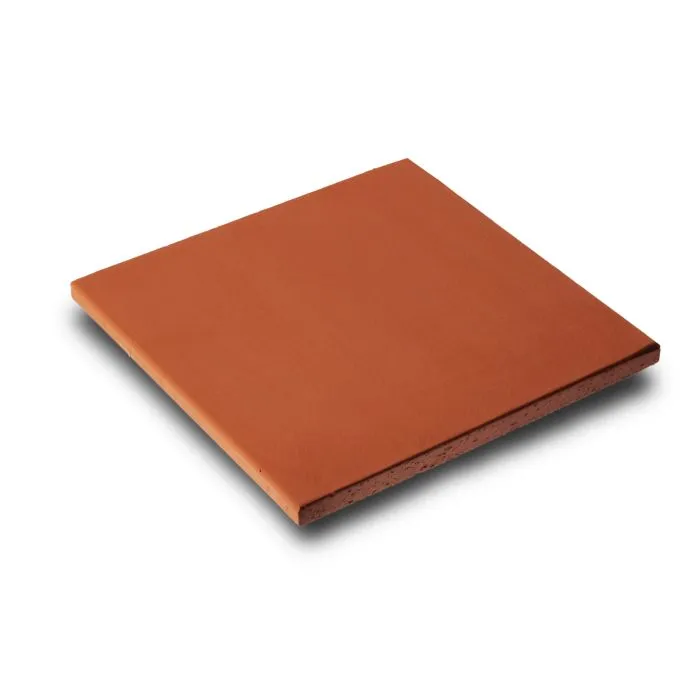

Garden tile terracotta tiles Barcelona 28x28cm (m2)

Buy Terracotta Tiles Barcelona 28x28cm at Intergard

Terracotta tiles terrace tile garden tiles Barcelona baked with natural dyes and non-slip layer, each tile is unique and like all terracotta over the years only more beautiful, for indoor and outdoor use. The terracotta tiles are packed per box, 1 box contains 12 tiles = 1m2 incl. calculation of 1cm joint.

Characteristics Declared value Tests
ISO
Length 280mm
Width 280mm
Dimensions
thickness 16mm
Average value of each tile ± 2% and max.
4mm
Dimensional tolerances
length and width (1)
Average value of ten tiles ± 1.5%
Dimensional thickness tolerances (1) Average value of each tile ± 10%
Straightness of sides (1) Maximum deviation ± 1%
Squareness (1) Maximum deviation ± 1%
Central curvature in relation to the diagonal ± 1.5%
Lateral curvature ± 1.5%
Surface flatness (1)
Warping relative to the diagonal ± 1.5%
Surface appearance Tiles free of visible defects that could
impair the appearance of a larger surface than
tile
95%
10.545-2
Water absorption Average EB>10%
Individual maximum 13%
10,545-3
Breaking force Minimum value 1500 N
Flexural strength Minimum individual value 9 N/mm²
Average minimum value 11 N/mm²
10.545-4
Deep abrasion resistance Maximum value 700 mm³ 10.545-6
Linear thermal expansion coefficient Value <2.1x10-6/ºC 10.545-8
Thermal shock resistance No visible defects Correct 10.545-9
Expansion due to humidity Maximum value ≤ 0.4 mm/m 10,545-10
Household products and salts for swimming pools UA
Acids and alkalis of low concentration ULA
chemical resistance
High concentration acids and alkalis UHA
10,545-13
Slip resistance Mean value Rd
(Pendulum, slider 57) 45
CEN/TS
16165:2011
Annex C
Reaction to fire Euroclass A1FL
