Wire mesh fence gate 203x100cm

Hot-Dip Galvanised Metal Garden Gate for Double Wire Fencing 203x100cm

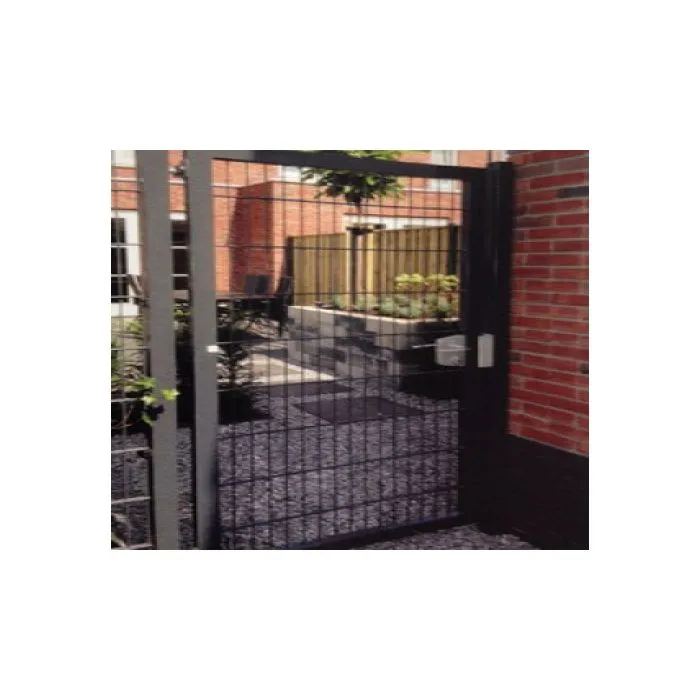

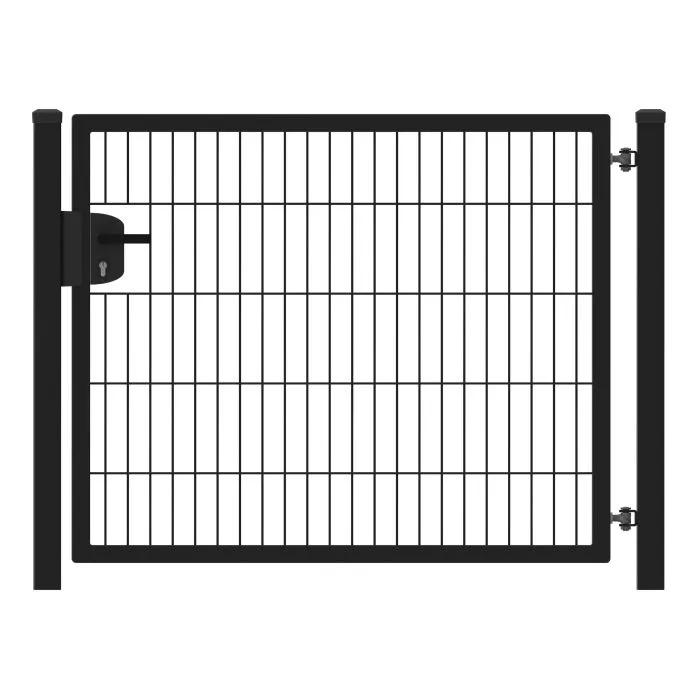

This hot-dip galvanised metal garden gate 203x100cm is a sturdy and durable pedestrian gate for gardens, properties and other outdoor areas. The gate can be installed as a standalone entrance or combined with double wire fence panels to create a complete and uniform fence system. It is supplied complete with two 60x60x2mm steel posts with a 600mm extension and a lock. The stable frame made from square steel tube profiles and the standard 8/6/8 double wire panel infill make this garden gate a practical choice for a durable metal fencing system.

Key benefits

• Dimensions: 203x100cm (HxW)
• Hot-dip galvanised finish
• Suitable for combination with double wire fencing
• Supplied complete with two extended posts and lock
• Stable 40x40x2mm square steel tube frame
• Fitted with an RVS-Locinox lock
• Reversible hinge with 180° rotation
• 25-year warranty

Metal garden gate for double wire fencing

The garden gate measures 203cm high and 100cm wide, making it suitable as a pedestrian entrance within a higher fencing system. The gate can be installed as a standalone solution or combined with double wire fence panels to create a consistent and complete metal fence.

The gate infill consists of a standard 8/6/8 double wire panel with a 50x200mm mesh size. This allows the gate to blend naturally with a surrounding double wire fence.

Stable steel frame

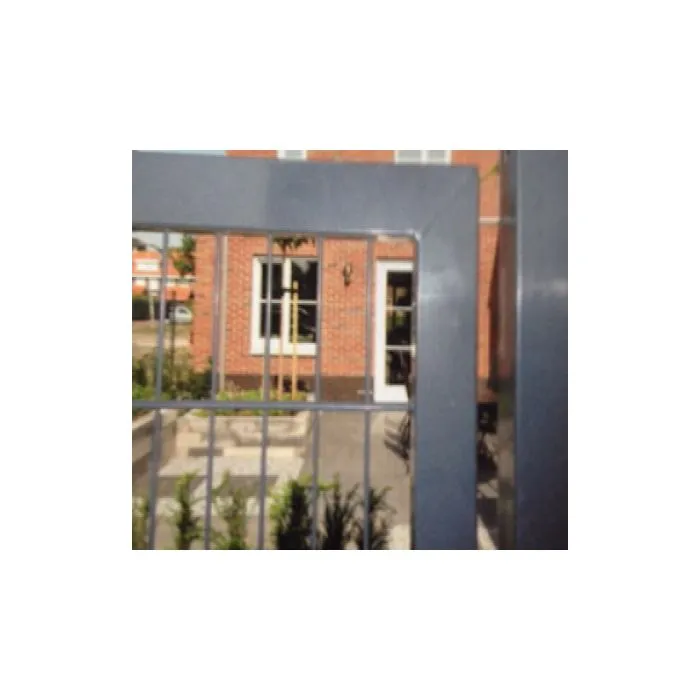

The frame is made from square steel tube profiles measuring 40x40x2mm. The square tube construction provides high stability and makes the gate suitable for regular use. The garden gate is also designed to be resistant to vandalism.

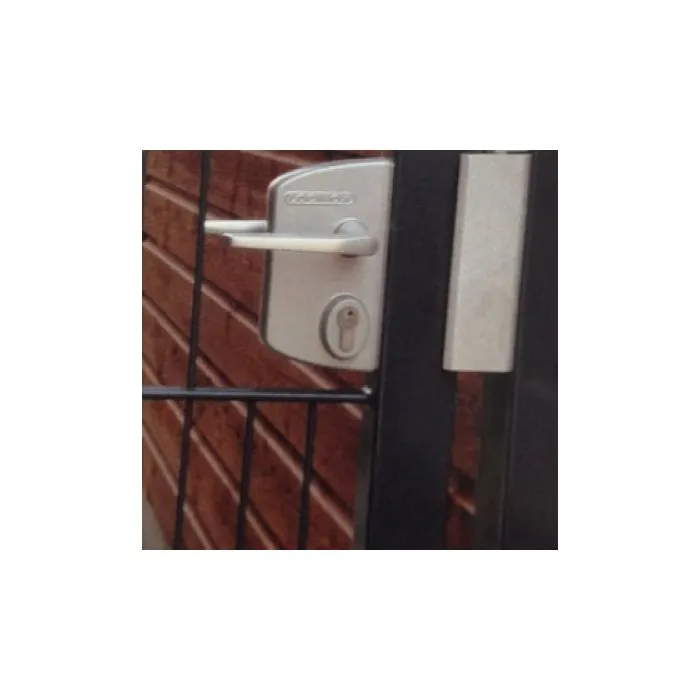

The gate is fitted with an RVS-Locinox lock. The hinge is reversible and can be rotated through 180°, providing flexibility during installation and when determining the opening direction.

Hot-dip galvanised finish

This version is hot-dip galvanised according to EN ISO 1461. The galvanised finish is suitable for outdoor applications and provides the steel construction with a durable surface treatment.

The garden gate is also available in a version combining hot-dip galvanisation according to EN ISO 1461 with a polyester powder coating. Standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Complete with posts and lock

The garden gate is supplied complete with two 60x60x2mm posts with a 600mm extension. A lock is also included. This provides the main components required to install the gate within your fencing system.

Technical specifications

Combine with double wire fencing and accessories

For a complete fencing system, combine this garden gate with double wire fence panels. For installation, suitable wire fence posts and wire fence accessories are also available. You can also view the range of fence gates for other suitable solutions.

Garden gate installation

1. Determine the desired position and opening direction of the garden gate.
2. Position the two supplied extended posts at the required location.
3. Check that the posts are correctly aligned and securely installed.
4. Attach the garden gate to the posts using the reversible hinges.
5. Check that the gate opens and closes smoothly.
6. Adjust the RVS-Locinox lock and check that the gate closes correctly.
7. Connect the gate to the adjacent double wire fence panels to create a complete fencing system.

Frequently asked questions

What are the dimensions of this garden gate?

This metal garden gate is 203cm high and 100cm wide.

Is this garden gate suitable for double wire fencing?

Yes, the garden gate has a standard 8/6/8 double wire panel infill and is suitable for combination with double wire fencing.

Is the garden gate supplied complete?

Yes, the garden gate is supplied with two extended 60x60x2mm posts with a 600mm extension and a lock.

What type of infill does the gate have?

The gate has an 8/6/8 double wire panel infill with a 50x200mm mesh size.

Which lock is fitted to the garden gate?

The garden gate is fitted with an RVS-Locinox lock.

Is the hinge reversible?

Yes, the hinge is reversible and can be rotated through 180°.

Is the garden gate hot-dip galvanised?

Yes, this version is hot-dip galvanised according to EN ISO 1461.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

How long is the warranty?

This metal garden gate comes with a 25-year warranty.

Durable 203x100cm metal garden gate

This hot-dip galvanised 203x100cm metal garden gate is a practical solution for a higher fencing system with double wire panels. The combination of the stable steel frame, 8/6/8 double wire panel infill, extended posts and RVS-Locinox lock provides a complete pedestrian gate solution. By combining the gate with matching double wire panels, posts and accessories, you can create a consistent and functional fencing system.
