Wire mesh fence gate 163x100cm

Hot-Dip Galvanised Metal Garden Gate for Double Wire Fence 163x100cm

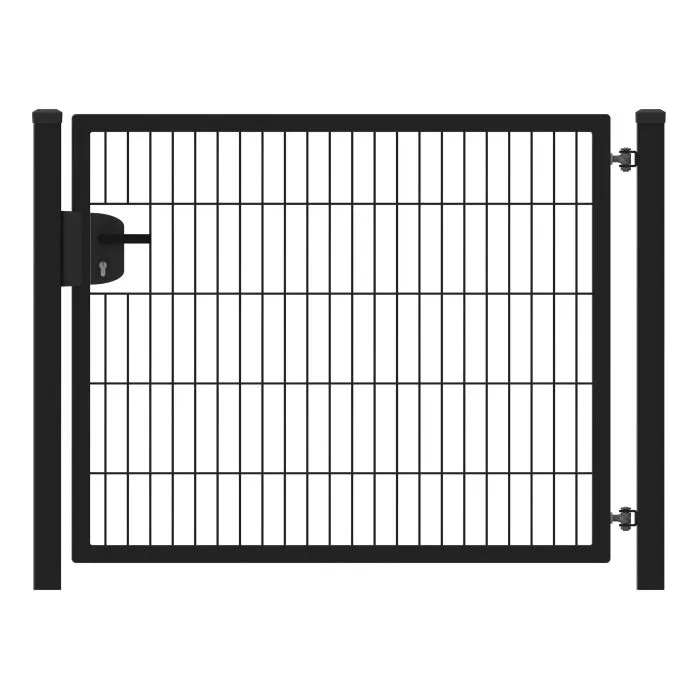

This hot-dip galvanised metal garden gate for double wire fencing measures 163x100cm (HxW) and is galvanised according to EN ISO 1461. The gate can be used as a standalone pedestrian gate or as part of a complete double wire fencing system. With its stable square steel tube frame, standard 8/6/8 double wire panel infill and RVS-Locinox lock, this garden gate provides a practical access point within a metal fencing system.

Key benefits

• Metal garden gate measuring 163x100cm (HxW)
• Hot-dip galvanised according to EN ISO 1461
• Suitable for double wire fencing
• Stable 40x40x2mm square steel tube frame
• Standard 8/6/8 double wire panel infill
• 50x200mm mesh size
• Fitted with an RVS-Locinox lock
• 25-year warranty

Metal garden gate for double wire fencing

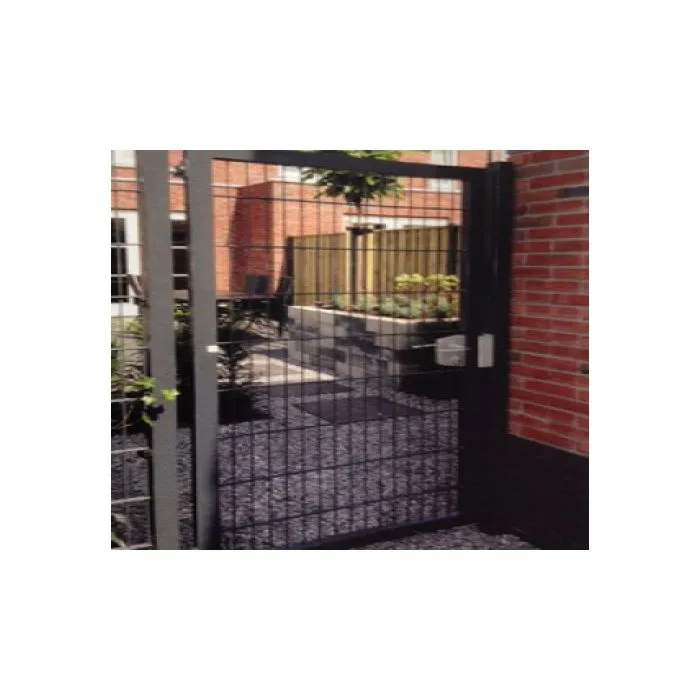

A garden gate provides convenient access through a fence. This 163x100cm metal garden gate is specifically designed for use with double wire fence panels. The gate can be installed as a standalone pedestrian gate or combined with matching double wire fence panels. This allows you to create a consistent fencing system around a garden, property or other outdoor area.

The gate infill consists of a standard 8/6/8 double wire panel with a 50x200mm mesh size. This gives the gate a matching appearance when combined with a double wire fence. View our double wire fence panels to create a complete fencing system.

Hot-dip galvanised finish

This version of the garden gate is hot-dip galvanised according to EN ISO 1461. The galvanised finish makes it suitable for combining with other hot-dip galvanised components of a double wire fencing system.

The garden gate is also available with hot-dip galvanising according to EN ISO 1461 combined with polyester powder coating. The standard colours for the powder-coated version are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

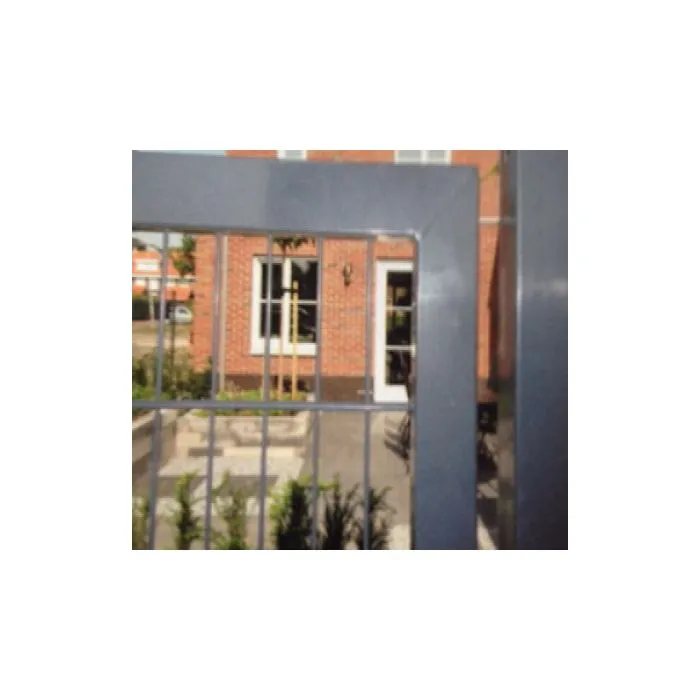

Stable steel frame

The garden gate frame is made from 40x40x2mm square steel tube profiles. The use of square tube profiles provides a high level of stability. The gate is designed as an extremely durable and vandal-resistant solution for access within a metal fencing system.

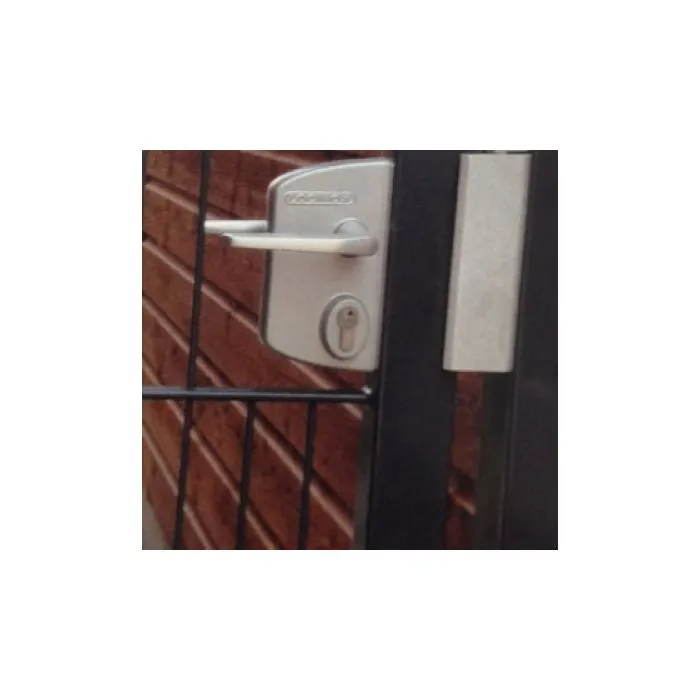

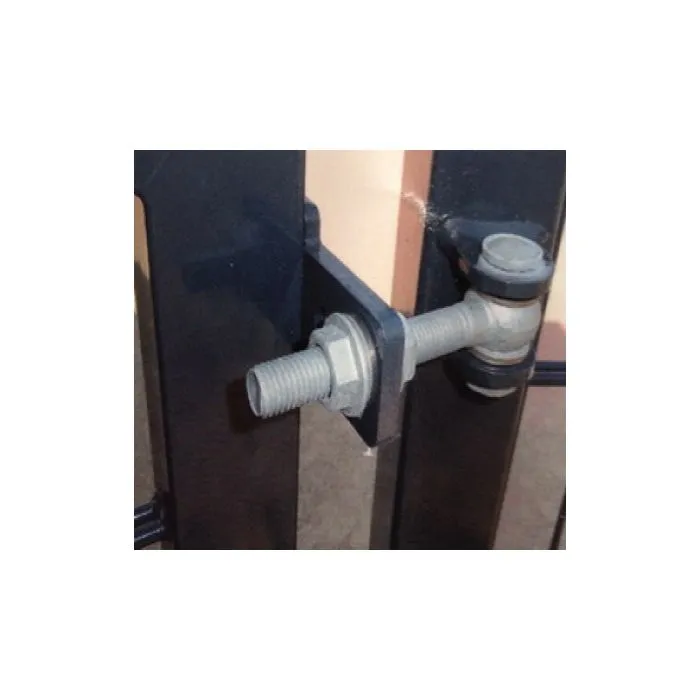

RVS-Locinox lock and reversible hinge

The garden gate is fitted with an RVS-Locinox lock. The hinge is reversible and can be rotated through 180°, providing flexibility during installation. This allows the opening direction to be adapted to the desired configuration.

Combine with double wire panels, posts and accessories

For a complete fencing system, combine the garden gate with matching double wire fence posts and suitable wire fence accessories. This allows the gate to be integrated into a complete double wire fencing system.

Specifications

How do you install this garden gate?

1. Determine the desired position and opening direction of the garden gate.
2. Position the required gate posts correctly.
3. Attach the garden gate to the posts using suitable fixing materials.
4. Adjust the reversible hinge according to the desired opening direction.
5. Check that the gate opens and closes correctly and that the RVS-Locinox lock functions properly.

Frequently asked questions

What are the dimensions of this metal garden gate?

This metal garden gate measures 163x100cm (HxW).

Is this garden gate suitable for double wire fencing?

Yes, the garden gate is designed for double wire fencing and has a standard 8/6/8 double wire panel infill.

What mesh size does the gate infill have?

The gate infill has a 50x200mm mesh size.

Is this garden gate hot-dip galvanised?

Yes, this version is hot-dip galvanised according to EN ISO 1461.

Which lock is fitted to the garden gate?

The garden gate is fitted with an RVS-Locinox lock.

Can the hinge be reversed?

Yes, the hinge is reversible and can be rotated through 180°.

Which colours are available?

The powder-coated version is available as standard in RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

How long is the warranty?

This metal garden gate comes with a 25-year warranty.

Complete garden gate for your double wire fence

This hot-dip galvanised 163x100cm metal garden gate provides a practical access point within a double wire fencing system. Its stable steel construction, 8/6/8 double wire panel infill, RVS-Locinox lock and reversible 180° rotatable hinge allow it to be used in different fencing configurations. Combine the gate with matching double wire panels, posts and accessories to create a complete fencing system.
