Wire mesh fence gate 143x100cm

Hot-Dip Galvanised Metal Garden Gate 143x100cm for Double Wire Fencing

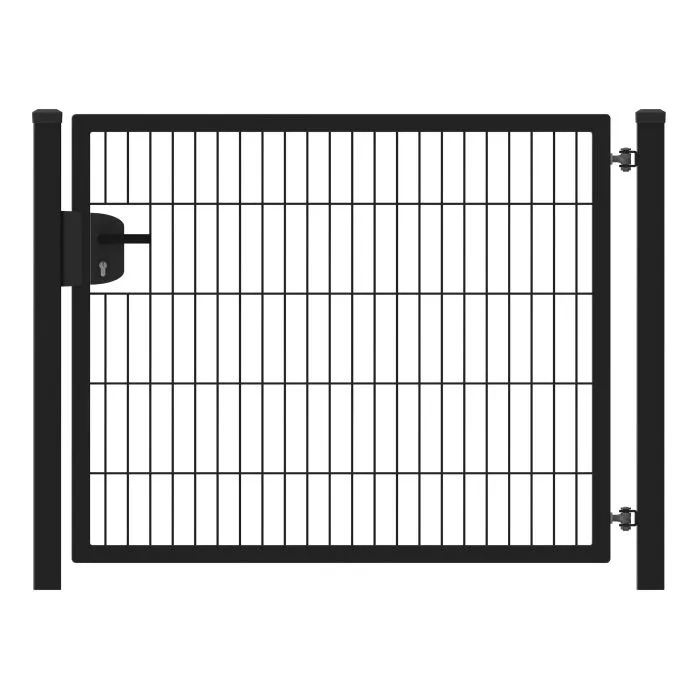

This hot-dip galvanised metal garden gate measuring 143x100cm is designed as a pedestrian gate for double wire fencing. It combines a stable steel frame with a standard 8/6/8 double wire panel infill and a mesh size of 50x200mm. The 40x40x2mm square steel tube frame provides high stability, while the RVS-Locinox lock offers practical and secure closing. The reversible hinge can be rotated through 180°, allowing the gate to be adapted to the desired installation situation. The gate is hot-dip galvanised according to EN ISO 1461 and can be installed separately or combined with double wire fencing.

Key benefits

• Metal garden gate measuring 143x100cm (HxW)
• Hot-dip galvanised finish for double wire fencing
• Standard 8/6/8 double wire panel infill with 50x200mm mesh
• Stable 40x40x2mm square steel tube frame
• Hot-dip galvanised according to EN ISO 1461
• Fitted with an RVS-Locinox lock
• Reversible hinge with 180° rotation
• Available in RAL 6005, RAL 6009, RAL 7016 and RAL 9005
• 25-year warranty

Hot-dip galvanised garden gate 143x100cm for double wire fencing

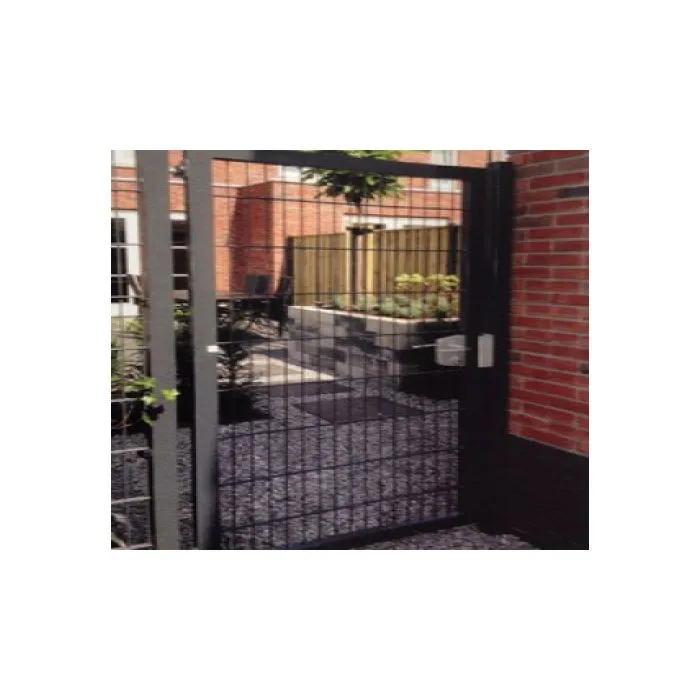

This metal garden gate is designed as a pedestrian entrance within a double wire fencing system. With a height of 143cm and a width of 100cm, it provides a practical access point for gardens, private grounds and other enclosed outdoor areas. The integrated double wire panel infill gives the gate a matching appearance with the surrounding fencing.

The garden gate can be installed separately or combined with double wire fence panels. This allows you to create a complete fencing system with matching panels, posts, accessories and a gate.

Stable steel frame

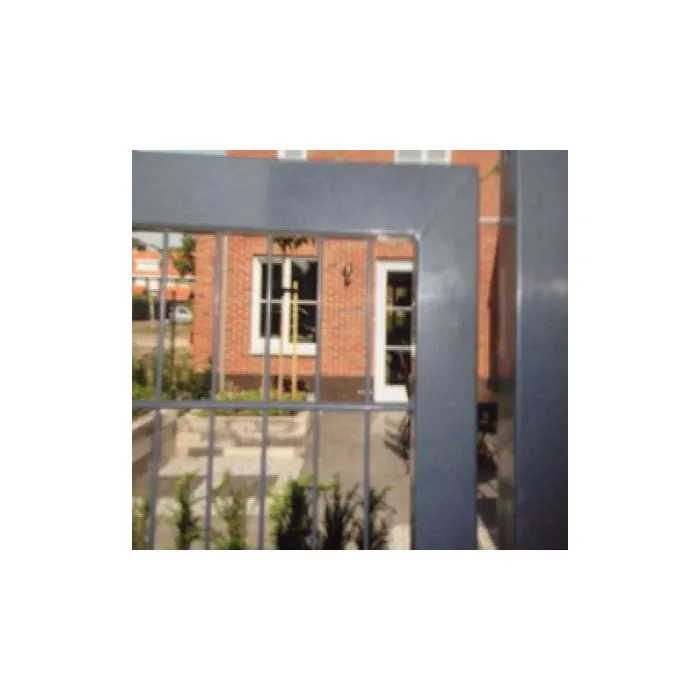

The frame is made from square steel tube measuring 40x40x2mm. The use of square tube profiles provides the gate with high stability and a solid construction. The infill consists of a standard 8/6/8 double wire panel with a mesh size of 50x200mm.

The combination of the steel frame and double wire panel infill makes this garden gate a suitable access solution for double wire fencing. It is designed for situations where a separate pedestrian entrance is required.

Hot-dip galvanised according to EN ISO 1461

This version of the garden gate is hot-dip galvanised according to EN ISO 1461. The galvanised finish is suitable for combining the gate with a hot-dip galvanised double wire fence.

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request. The garden gate is described as extremely durable and vandal-resistant and comes with a 25-year warranty.

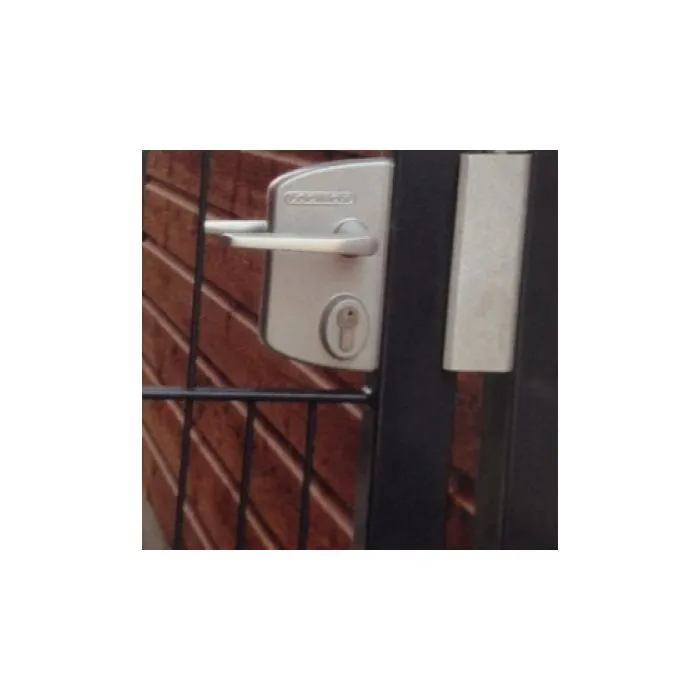

RVS-Locinox lock and reversible hinge

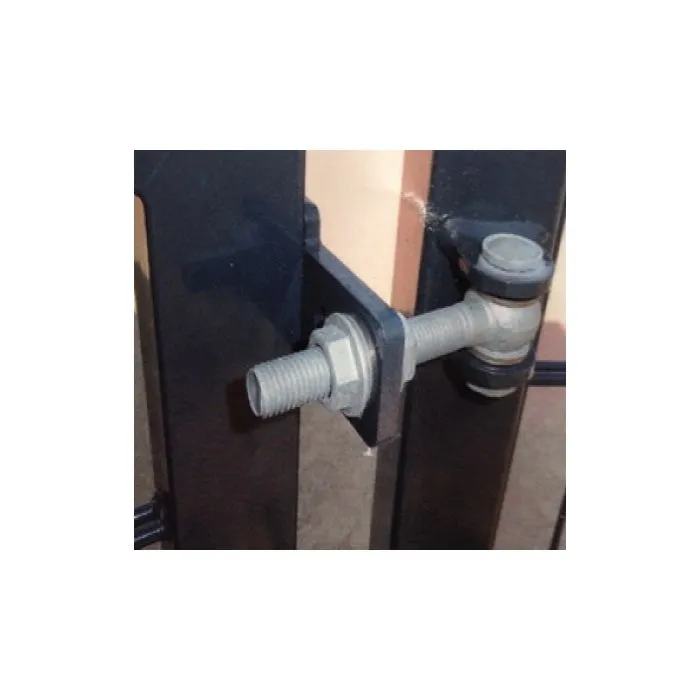

The garden gate is fitted with an RVS-Locinox lock. The hinge is reversible and can be rotated through 180°. This allows the gate to be adapted to the installation situation and the desired opening direction.

For a complete installation, the garden gate can be combined with suitable wire fence posts and wire fence accessories.

What is this garden gate suitable for?

This 143x100cm metal garden gate is suitable for creating a pedestrian entrance in a double wire fence. It can be used in gardens, private grounds and other outdoor areas where a separate access point is required. The 100cm width provides a practical passage for pedestrians.

How do you install the garden gate?

1. Determine the desired location of the garden gate and the preferred opening direction.
2. Position the gate posts at the correct distance for the 100cm wide gate.
3. Install and secure the posts according to the selected fencing system.
4. Mount the garden gate using the reversible hinges.
5. Adjust the hinges and check that the gate opens and closes correctly.
6. Check the RVS-Locinox lock and make sure the gate closes securely.

Specifications

Frequently asked questions

What are the dimensions of the garden gate?

The garden gate is 143cm high and 100cm wide.

Is this garden gate suitable for double wire fencing?

Yes, the garden gate is designed for use with double wire fencing and has a matching 8/6/8 double wire panel infill.

What is the mesh size of the gate infill?

The double wire panel infill has a mesh size of 50x200mm.

What is the frame made from?

The frame is made from square steel tube measuring 40x40x2mm.

Is the garden gate hot-dip galvanised?

Yes, the garden gate is hot-dip galvanised according to EN ISO 1461.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Can the opening direction be adjusted?

Yes, the garden gate has a reversible hinge that can be rotated through 180°, allowing it to be adapted to the desired opening direction.

How long is the warranty?

This metal garden gate comes with a 25-year warranty.

Complete your double wire fencing system

Create a complete and matching fencing system by combining this hot-dip galvanised garden gate with double wire fence panels, wire fence posts and wire fence accessories. For access to the enclosed area, combine the system with a suitable fence gate.
