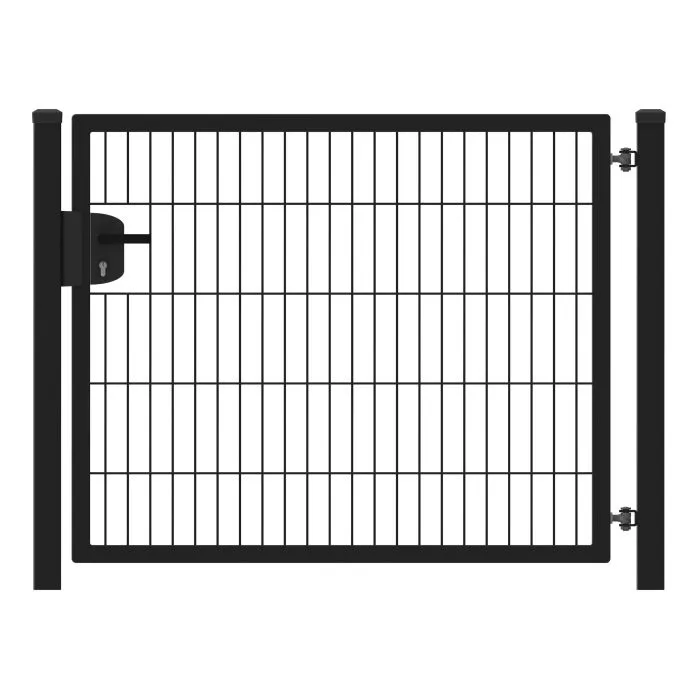

Wire mesh fence gate 123x100cm

Metal Garden Gate for Double Wire Fence 123x100cm Hot-Dip Galvanised

The 123x100cm hot-dip galvanised metal garden gate is a stable and durable access solution for double wire fencing. This pedestrian gate can be installed separately or combined with matching double wire fence panels. The sturdy frame is made from 40 x 40 x 2mm square steel tubing and features 8/6/8 double wire panel infill with a 50 x 200mm mesh size. The gate is hot-dip galvanised in accordance with EN ISO 1461 and is extremely durable and vandal-resistant. It is fitted with an RVS-Locinox lock and a reversible hinge that can rotate through 180°, allowing flexible installation.

Benefits of the 123x100cm Metal Garden Gate

• Dimensions: 123cm high x 100cm wide
• Hot-dip galvanised steel in accordance with EN ISO 1461
• Extremely durable and vandal-resistant
• Sturdy 40 x 40 x 2mm square steel tube frame
• 8/6/8 double wire panel infill with 50 x 200mm mesh
• RVS-Locinox lock for secure closing
• Reversible hinge with 180° rotation
• 25-year warranty

Metal Garden Gate for Double Wire Fencing

This metal garden gate for double wire fencing is designed to complement modern double wire fence systems. The gate is fitted with 8/6/8 double wire panel infill with a 50 x 200mm mesh size, creating a consistent appearance with the surrounding fencing.

The gate can be purchased separately or combined with matching double wire fence panels. Suitable wire fence posts and wire fence accessories are also available for completing the fence installation.

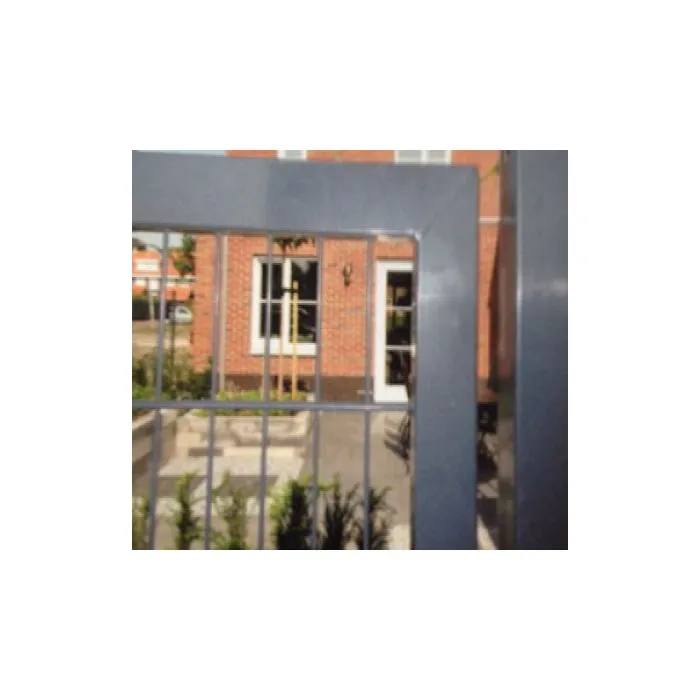

Sturdy 40 x 40 x 2mm Steel Tube Frame

The frame is manufactured from 40 x 40 x 2mm square steel tubing. This provides the gate with a stable construction suitable for use as a pedestrian access point in a double wire fence system.

8/6/8 Double Wire Panel Infill

The gate is fitted with 8/6/8 double wire panel infill. The mesh size is 50 x 200mm, allowing the gate to match double wire fence panels with the same configuration and creating a consistent appearance across the fence line.

Hot-Dip Galvanised Metal Garden Gate

The garden gate is hot-dip galvanised in accordance with EN ISO 1461. The gate is extremely durable and vandal-resistant, making it suitable for a range of outdoor fencing applications.

A polyester powder-coated version is also available. Standard colours include RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

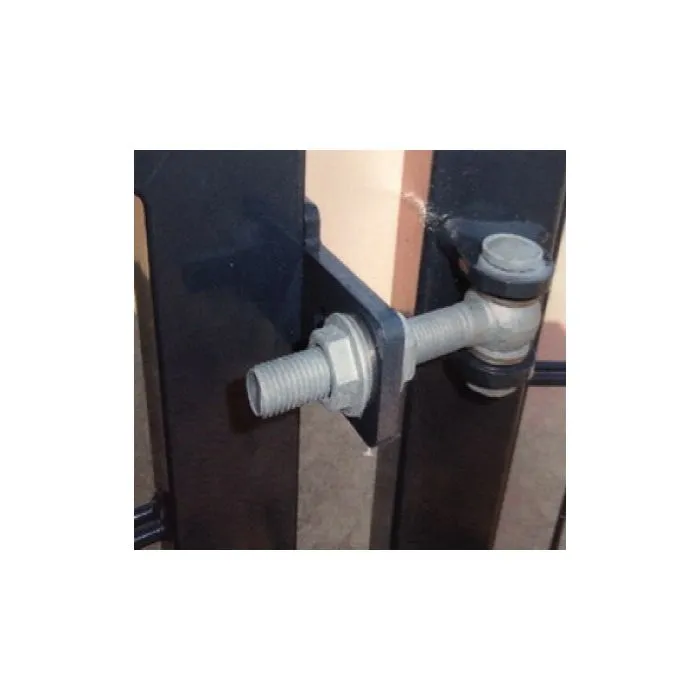

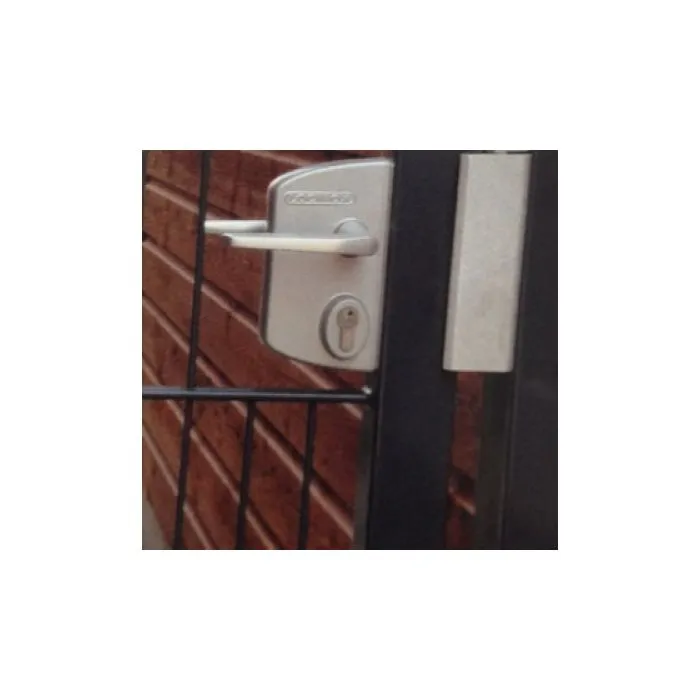

RVS-Locinox Lock and Reversible Hinge

The gate is equipped with an RVS-Locinox lock for closing the gate securely. The hinge is reversible and can rotate through 180°. This allows the gate to be configured according to the intended installation situation.

Technical Specifications

How to Install the Garden Gate

1. Determine the position: Decide where the garden gate will be installed between the double wire fence sections.
2. Position the posts: Use suitable wire fence posts for the gate installation.
3. Position and align the gate: Place the gate according to the required opening direction and align it carefully.
4. Adjust the hinge: Position the reversible hinge according to the installation requirements. The hinge can rotate through 180°.
5. Check the lock: After installation, check that the RVS-Locinox lock closes and locks correctly.
6. Connect the fence: Connect the gate to the adjoining double wire fence panels using the required fence accessories.

Combine the Garden Gate with Double Wire Fence Panels

For a complete and consistent fencing system, the metal garden gate can be combined with matching double wire fence panels. The panels form the main fence sections, while the garden gate provides convenient pedestrian access to the garden or property.

Matching posts and fixing materials are available to complete the installation. For alternative access solutions, you can also view the available fence gates for double wire fencing.

Suitable Applications

The metal garden gate is suitable for gardens, residential properties and other outdoor areas enclosed with double wire fencing. With a height of 123cm and a width of 100cm, it provides a practical pedestrian entrance. The hot-dip galvanised finish, sturdy construction and vandal-resistant design make it suitable for various fencing applications.

Frequently Asked Questions

What are the dimensions of the garden gate?

The garden gate measures 123cm high and 100cm wide. The dimensions are specified as height x width.

What type of infill does the gate have?

The gate has 8/6/8 double wire panel infill. The mesh size is 50 x 200mm.

Is the garden gate hot-dip galvanised?

Yes, the garden gate is hot-dip galvanised in accordance with EN ISO 1461. A polyester powder-coated version is also available.

Which colours are available?

The standard powder-coated colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Which lock is fitted to the gate?

The garden gate is fitted with an RVS-Locinox lock. The lock is supplied as part of the gate.

Can the opening direction be adjusted?

The hinge is reversible and can rotate through 180°. This allows the gate to be configured according to the installation situation.

How long is the warranty?

The garden gate comes with a 25-year warranty.

123x100cm Hot-Dip Galvanised Metal Garden Gate

The 123x100cm hot-dip galvanised metal garden gate is a practical access solution for double wire fencing. The combination of a sturdy 40 x 40 x 2mm square steel tube frame, 8/6/8 double wire panel infill, RVS-Locinox lock and reversible hinge provides a functional gate solution for outdoor fencing. The hot-dip galvanised finish in accordance with EN ISO 1461 and 25-year warranty make this gate suitable for long-term outdoor use.
