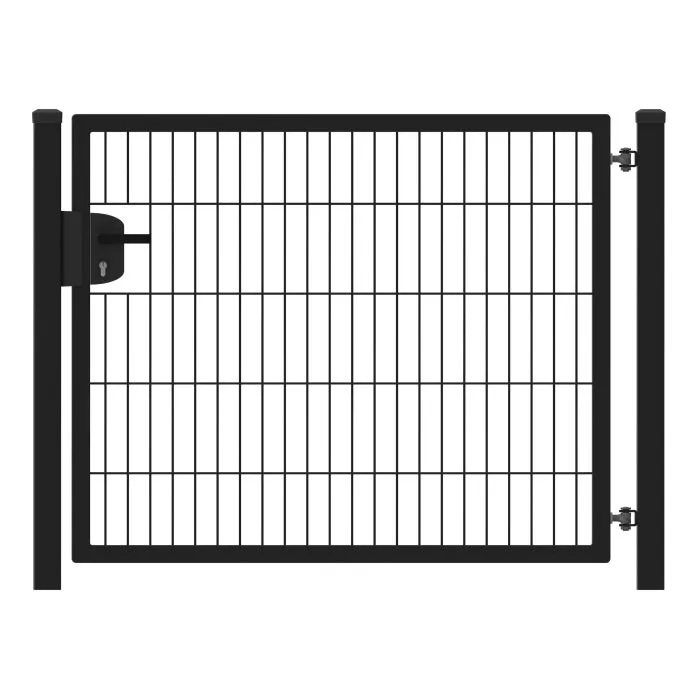

Wire mesh fence gate 103x100cm

Metal Garden Gate 103x100 cm Hot-Dip Galvanised for Double Wire Fencing

The metal garden gate 103x100 cm for double wire fencing is a practical pedestrian gate for creating an accessible entrance within your fencing system. This hot-dip galvanised steel swing gate can be used as a standalone gate or combined with double wire fence panels. The gate features a stable frame made from square steel tube profiles, a standard 8/6/8 double wire panel infill and an RVS-Locinox lock. The reversible hinge can be rotated through 180°, allowing the gate to be adapted to the required installation situation.

Benefits of the 103x100 cm metal garden gate

• Dimensions: 103 x 100 cm (H x W)
• Hot-dip galvanised according to EN ISO 1461
• Stable frame made from 40 x 40 x 2 mm square steel tube
• 8/6/8 double wire panel infill with 50 x 200 mm mesh size
• Fitted with an RVS-Locinox lock
• Reversible hinge with 180° rotation
• Standard colours RAL 6005, 6009, 7016 and 9005 for the powder-coated version
• 25-year warranty

Metal garden gate for double wire fencing

This garden gate for double wire fencing is designed as a pedestrian gate for fencing systems made with double wire panels. The gate is 103 cm high and 100 cm wide and can be installed as a standalone gate or as part of a complete double wire fencing system.

The gate infill consists of a standard 8/6/8 double wire panel with a mesh size of 50 x 200 mm. This allows the gate to visually match a fence made from double wire panels. Explore our range of double wire fence panels to create a complete fencing system.

Stable steel frame

The gate frame is made from a 40 x 40 x 2 mm square steel tube profile. The square profile provides the frame construction for the gate. Combined with the double wire panel infill, the gate is suitable for creating a pedestrian entrance within a fencing system.

The garden gate is specified as extremely durable and vandal-resistant. It can therefore be used where a functional pedestrian entrance is required within an enclosed area.

Hot-dip galvanised garden gate according to EN ISO 1461

The garden gate is hot-dip galvanised according to EN ISO 1461. A version with hot-dip galvanising combined with a polyester powder coating is also available.

The standard colours for the powder-coated version are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request, allowing the gate to be matched to the existing fencing system.

Technical specifications

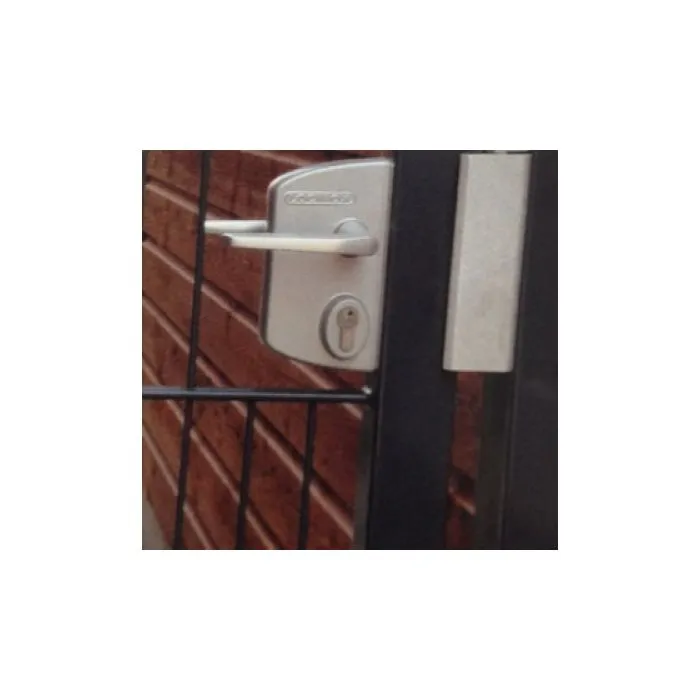

RVS-Locinox lock and reversible hinge

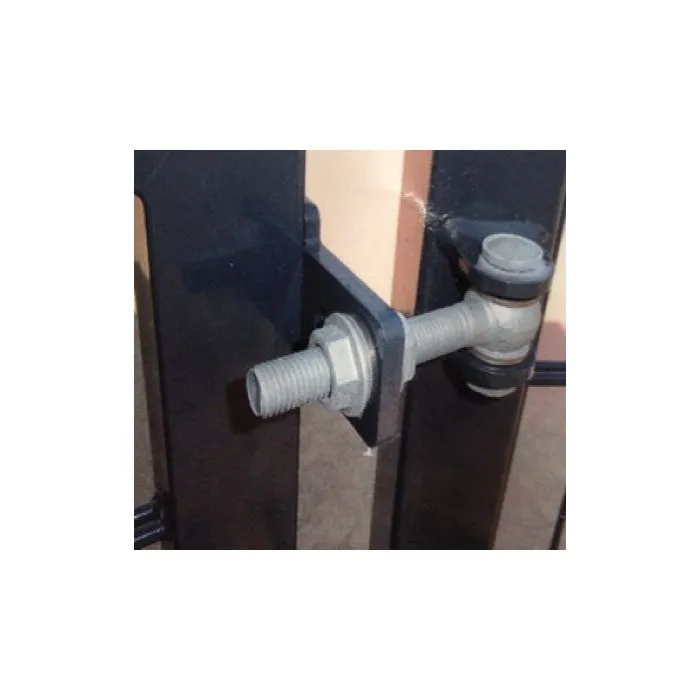

The garden gate is fitted with an RVS-Locinox lock. The hinge is reversible and can be rotated through 180°. This allows the opening direction of the gate to be adapted to the installation situation.

For a complete gate installation, you will also need the appropriate posts and fixing materials. See our wire fence posts and wire fence accessories.

How do you install the garden gate?

1. Determine the position: decide where the pedestrian gate will be installed within your fencing system.
2. Position the posts: install the required posts and ensure that they are correctly aligned.
3. Mount the gate: attach the garden gate to the posts using the hinge system.
4. Check the opening direction: adjust the reversible hinge according to the required opening direction.
5. Check the lock: make sure that the RVS-Locinox lock operates correctly and that the gate opens and closes properly.

Combine the garden gate with double wire fencing

The metal garden gate can be combined with a complete double wire fencing system. The double wire panel infill of the gate matches the appearance of double wire panels, helping you create a consistent fencing system.

For installation and completion of your fence, you can use matching wire fence posts and wire fence accessories. You can also view our fence gates for other suitable access solutions.

Applications of the garden gate

The metal garden gate 103x100 cm is intended as a pedestrian gate within a fencing system. With a width of 100 cm, it provides a practical access point for pedestrians. The gate can be used independently or as part of a fence made from double wire panels.

The combination of a steel frame, double wire panel infill, RVS-Locinox lock and reversible hinge makes the gate suitable for various situations where a fenced area requires a practical pedestrian entrance.

Frequently asked questions

What are the dimensions of the garden gate?

The garden gate is 103 cm high and 100 cm wide. The dimensions are 103 x 100 cm (H x W).

Is this garden gate suitable for double wire fencing?

Yes, the garden gate is suitable for fencing systems with double wire panels. The gate features an 8/6/8 double wire panel infill with a mesh size of 50 x 200 mm.

What is the gate frame made from?

The frame is made from a 40 x 40 x 2 mm square steel tube profile. The gate is fitted with a double wire panel infill.

Is the garden gate hot-dip galvanised?

Yes, the garden gate is hot-dip galvanised according to EN ISO 1461. A version with hot-dip galvanising and polyester powder coating is also available.

Which colours are available?

The standard colours for the powder-coated version are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Which lock is fitted to the garden gate?

The garden gate is fitted with an RVS-Locinox lock. The hinge is reversible and can be rotated through 180°.

How long is the warranty?

The garden gate comes with a 25-year warranty. The warranty is included in the stated product specifications.

Metal garden gate 103x100 cm for your fencing system

The metal garden gate 103x100 cm is a hot-dip galvanised pedestrian gate designed for use with double wire fencing. It features a stable square steel frame, 8/6/8 double wire panel infill, an RVS-Locinox lock and a reversible hinge that can be rotated through 180°. Combine the gate with matching double wire panels, posts and accessories to complete your fencing system.
