Wire mesh fence gate 203x500cm

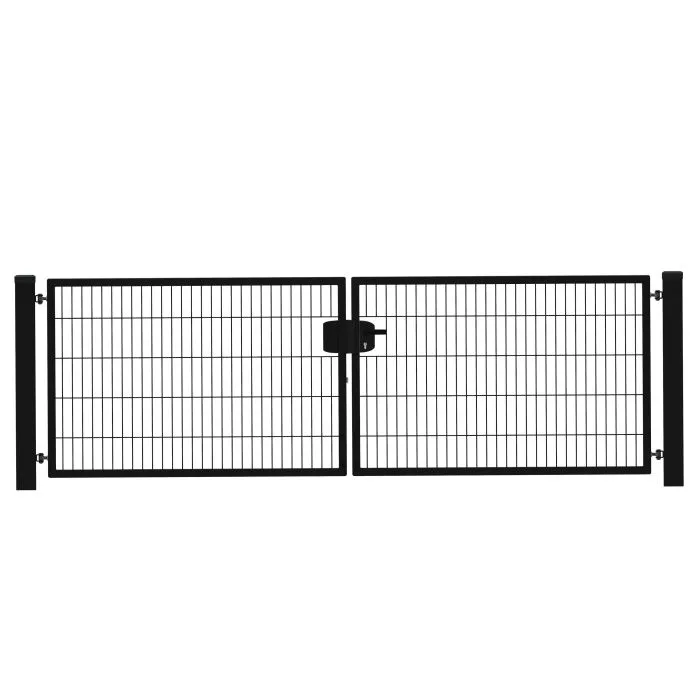

Metal Double Wire Mesh Gate, 203 cm High and 500 cm Wide

Article no.: 29500203

This metal gate for double wire mesh fencing measures 203 cm high and 500 cm wide, making it suitable for creating a wide entrance in a metal fence system. The gate features a double wire mesh infill with an 8/6/8 wire configuration and a frame made from square steel tubing. It is fitted with a stainless steel Locinox lock and reversible hinges that can rotate up to 180°. The gate is hot-dip galvanised in accordance with EN ISO 1461 and is also available with an additional polyester powder-coated finish. Standard colours include RAL 6005, 6009, 7016 and 9005, with other colours available on request. The gate comes with a 25-year warranty.

Features of the Metal Double Wire Mesh Gate 203 x 500 cm

• Dimensions: 203 cm high x 500 cm wide
• Stable construction using square steel tubing
• Double wire mesh infill, 8/6/8
• Mesh size: 50 x 200 mm
• Frame made from 40 x 40 x 2 mm square steel tubing
• Stainless steel Locinox lock
• Reversible hinges with a rotation of up to 180°
• Hot-dip galvanised in accordance with EN ISO 1461
• Also available with a polyester powder-coated finish
• Standard colours: RAL 6005, 6009, 7016 and 9005
• Other colours available on request
• 25-year warranty

Metal Gate with Double Wire Mesh Infill

This metal gate combines a wide entrance with a design that complements double wire mesh fencing. The infill consists of double wire mesh with an 8/6/8 wire configuration and a mesh size of 50 x 200 mm. Its appearance makes it suitable for integration into a matching double wire mesh fence system.

Stable Steel Frame

The frame is made from square steel tubing measuring 40 x 40 x 2 mm. This construction contributes to the stability of the gate. With a height of 203 cm and a width of 500 cm, this model is suitable for applications where a particularly wide entrance is required.

Stainless Steel Locinox Lock and Reversible Hinges

The gate is fitted with a stainless steel Locinox lock. The reversible hinges can rotate up to 180°, allowing the opening direction to be adapted to the installation requirements. Before installation, check that there is sufficient space for the gate to swing open.

Hot-Dip Galvanised and Optional Powder-Coated Finish

The gate is hot-dip galvanised in accordance with EN ISO 1461. An additional polyester powder-coated finish is also available. Standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours can be requested.

Technical Specifications

Installing the Metal Gate

Before installation, carefully measure the opening and determine the required gate position and opening direction. Ensure that the supporting structure is suitable and select the necessary posts and fixings according to the installation conditions. Install the gate in accordance with the relevant instructions, then check that the hinges move freely and the lock operates correctly.

Combine with Double Wire Mesh Panels and Accessories

Complete your fencing system with matching hot-dip galvanised double wire mesh panels. You can also view the matching fence posts and fence accessories to complete your installation.

Frequently Asked Questions

What are the dimensions of this metal gate?

The gate is 203 cm high and 500 cm wide.

What type of infill does the gate have?

The gate features double wire mesh with an 8/6/8 wire configuration and a mesh size of 50 x 200 mm.

What is the frame made of?

The frame is made from square steel tubing measuring 40 x 40 x 2 mm.

Which lock is fitted to the gate?

The gate is fitted with a stainless steel Locinox lock.

How far can the hinges rotate?

The reversible hinges can rotate up to 180°.

Is the gate hot-dip galvanised?

Yes, the gate is hot-dip galvanised in accordance with EN ISO 1461.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

How long is the warranty?

The gate comes with a 25-year warranty.

Wide Metal Gate for Double Wire Mesh Fencing

With its 500 cm width, steel frame and double wire mesh infill, this metal gate provides a wide access point for a double wire mesh fencing system. The hot-dip galvanised finish, optional polyester powder coating and choice of RAL colours allow you to match the gate to the rest of your fencing.
