Wire mesh fence gate 203cm high and 400cm wide

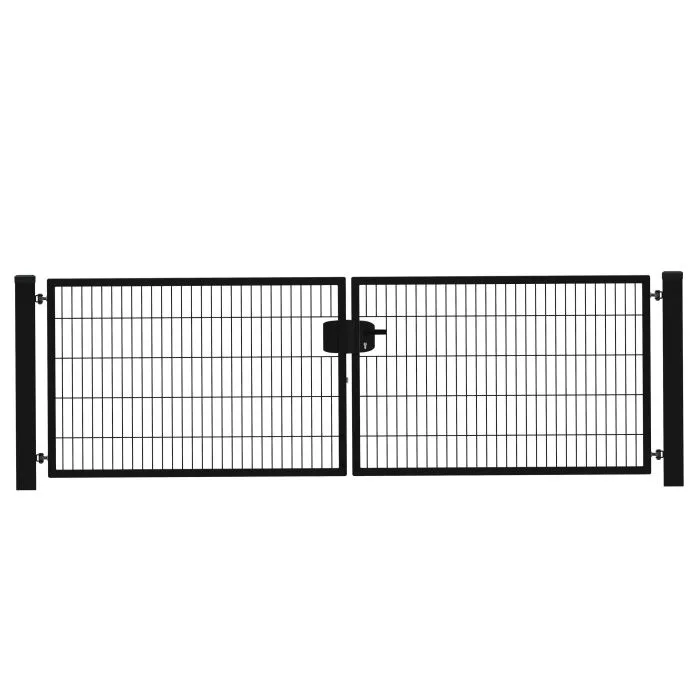

Metal Garden Gate for Double Wire Fence Panels 203x400 cm Hot-Dip Galvanised

This metal garden gate, measuring 203 cm high and 400 cm wide, is designed for use with double wire fence panels. It provides a wide access point for gardens, driveways and other enclosed outdoor areas. The gate features a double wire mesh infill with an 8/6/8 wire configuration and a mesh size of 50 × 200 mm. The frame is made from 40 × 40 × 2 mm square steel tubing, providing a stable construction. The gate is fitted with a stainless steel Locinox lock and reversible hinges that can rotate up to 180°. It is hot-dip galvanised in accordance with EN ISO 1461 and is also available with an additional polyester powder-coated finish in a choice of standard colours.

Features of the metal garden gate 203x400 cm

• Dimensions: 203 cm high × 400 cm wide
• Suitable for use with double wire fence panels
• Double wire mesh infill with an 8/6/8 wire configuration
• Mesh size: 50 × 200 mm
• Frame made from 40 × 40 × 2 mm square steel tubing
• Stainless steel Locinox lock
• Reversible hinges with a rotation angle of up to 180°
• Hot-dip galvanised in accordance with EN ISO 1461
• Also available with polyester powder coating
• Standard colours: RAL 6005, RAL 6009, RAL 7016 and RAL 9005
• Other colours available on request
• 25-year warranty

Metal garden gate for double wire fencing

This wide metal garden gate is suitable for entrances that require a 400 cm opening. It can be combined with matching double wire fence panels to create a coordinated fencing system around your garden or property. The double wire mesh infill complements the appearance of double wire fencing, making it a practical option for a consistent fence design.

The gate infill features an 8/6/8 wire configuration and a mesh size of 50 × 200 mm. The frame is constructed from 40 × 40 × 2 mm square steel tubing. These specifications contribute to the stability of the gate and make it suitable for everyday use.

Hot-dip galvanised steel with optional powder coating

The gate is hot-dip galvanised in accordance with EN ISO 1461. For a coloured finish, it is also available with polyester powder coating. Standard colours include RAL 6005 green, RAL 6009 dark green, RAL 7016 anthracite grey and RAL 9005 black. Other colours can be requested to match your fencing and outdoor surroundings.

Stainless steel Locinox lock and reversible hinges

The gate is fitted with a stainless steel Locinox lock. Its reversible hinges allow the opening direction to be adapted to the layout of your entrance. The hinges can rotate up to 180°, providing flexibility when positioning the gate.

Technical specifications

Installing the metal garden gate

Before installation, check the required opening width and ensure that the gate is compatible with your planned fence layout. Decide on the desired opening direction and position the hinges accordingly, allowing for their rotation of up to 180°. Follow the relevant installation instructions for the gate and for any posts or fixing materials supplied separately.

Frequently asked questions

What are the dimensions of this garden gate?

The gate measures 203 cm high and 400 cm wide.

Can this gate be used with double wire fence panels?

Yes, it is designed to be combined with double wire fence panels.

What is the mesh size?

The mesh size is 50 × 200 mm, with an 8/6/8 double wire configuration.

What is the gate frame made from?

The frame is made from 40 × 40 × 2 mm square steel tubing.

Which lock is fitted to the gate?

The gate is fitted with a stainless steel Locinox lock.

Can the opening direction be changed?

Yes, the reversible hinges allow the opening direction to be adapted to the entrance. They can rotate up to 180°.

Which colours are available?

The standard powder-coated colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

What warranty does the gate include?

The gate comes with a 25-year warranty.

Complete your double wire fencing system

Complete your fencing system with matching powder-coated double wire fence panels, suitable fence posts and fence accessories. You can also explore our range of metal fence gates to find the right option for your fencing project.
