Wire mesh fence gate 203cm high and 350cm wide

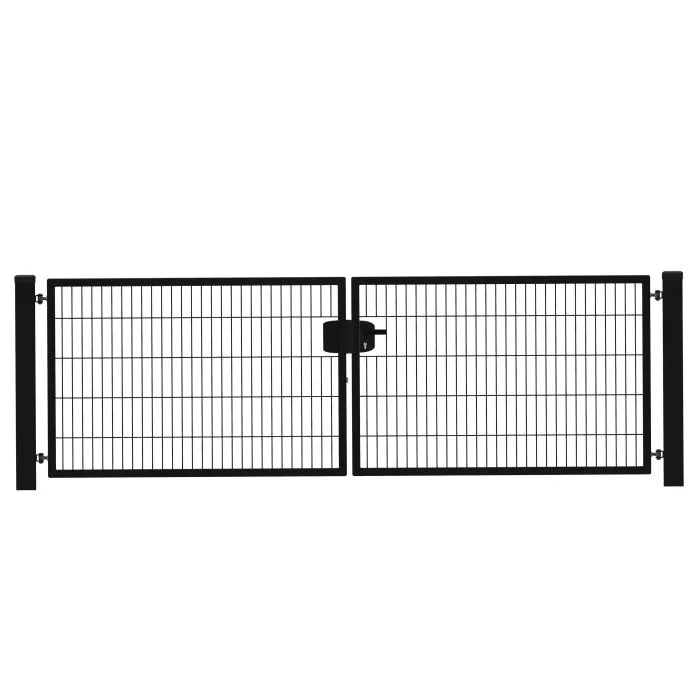

Metal Garden Gate for Double Wire Fence Panels 203x350 cm Galvanised

This metal garden gate measuring 203 cm high and 350 cm wide is designed for use with double wire fence panels. It can be used to create a practical access point in a garden or other enclosed outdoor area. The gate features a double wire mesh infill with an 8/6/8 wire configuration and a 50 × 200 mm mesh size. Its square steel tube frame provides a stable construction, while the stainless steel Locinox lock offers reliable locking. The gate is hot-dip galvanised in accordance with EN ISO 1461 and is also available with a polyester powder-coated finish in a choice of standard RAL colours.

Key features of the metal garden gate 203x350 cm

• Dimensions: 203 cm high × 350 cm wide
• Suitable for use with double wire fence panels
• Double wire mesh infill with an 8/6/8 wire configuration
• Mesh size: 50 × 200 mm
• Frame made from 40 × 40 × 2 mm square steel tubing
• Stainless steel Locinox lock
• Reversible hinges with a rotation angle of up to 180°
• Hot-dip galvanised in accordance with EN ISO 1461
• Available with an additional polyester powder-coated finish
• 25-year warranty

Metal garden gate for double wire fencing

This wide metal garden gate is suitable for access points where a 350 cm opening is required. It can be combined with double wire fence panels to create a coordinated fencing system around a garden or other outdoor area. The double wire mesh infill matches the style of double wire fencing, making it a suitable choice for installations where a consistent appearance is desired.

The mesh has a 50 × 200 mm opening size and an 8/6/8 wire configuration. The frame is constructed from square steel tubing measuring 40 × 40 × 2 mm. These specifications provide a solid frame and a practical design for everyday access.

Hot-dip galvanised steel with optional powder coating

The gate is hot-dip galvanised in accordance with EN ISO 1461. For a different appearance, it is also available with a polyester powder-coated finish. Standard colours include RAL 6005 green, RAL 6009 dark green, RAL 7016 anthracite grey and RAL 9005 black. Other colours are available on request.

Lock and adjustable opening direction

The gate is fitted with a stainless steel Locinox lock. The reversible hinges allow the gate to be installed with an opening direction suited to the layout of the entrance. The hinges can rotate up to 180°, offering flexibility when positioning the gate.

Specifications

Installation

Before installation, check the required opening width and ensure that the gate is compatible with the planned fence layout. Position the gate and hinges so that the gate can open in the desired direction, taking advantage of the reversible hinges and their rotation of up to 180°. Follow the applicable installation instructions for the gate and any separately supplied posts or mounting materials.

Frequently asked questions

What are the dimensions of this garden gate?

The gate measures 203 cm high and 350 cm wide.

Can this gate be combined with double wire fence panels?

Yes, it is designed for use with double wire fence panels.

What is the mesh size?

The mesh size is 50 × 200 mm, with an 8/6/8 double wire configuration.

What material is used for the frame?

The frame is made from square steel tubing measuring 40 × 40 × 2 mm.

Which lock is fitted to the gate?

The gate is fitted with a stainless steel Locinox lock.

Can the opening direction be changed?

Yes, the reversible hinges allow the gate to be installed to suit the required opening direction. They can rotate up to 180°.

Which colours are available?

The standard powder-coated colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours can be requested.

What warranty is provided?

The gate comes with a 25-year warranty.

Complete your double wire fencing system

Combine this gate with matching powder-coated double wire fence panels, suitable fence posts and fence accessories to create a coordinated fencing system. Explore the range of metal fence gates to compare available options.
