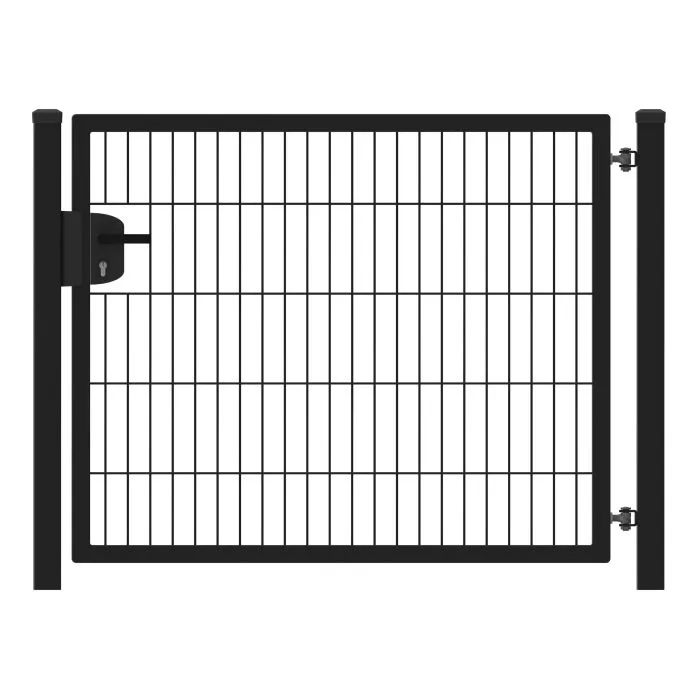

Garden gate 203x100cm

Powder-Coated Metal Garden Gate for Double Wire Fence Panels, 203cm High and 100cm Wide

This powder-coated metal garden gate 203x100cm is a strong and durable solution for creating a practical access point in your garden, property or fenced area. The steel swing gate can be used as a standalone pedestrian gate or combined with double wire fence panels. The garden gate is supplied complete with two 60x60x2mm square posts, extended by 600mm, and an RVS-Locinox lock. The sturdy square tube frame, double wire panel infill and reversible, 180° rotating hinges provide a practical and stable gate solution.

Key benefits

• Dimensions: 203x100cm (HxW)
• Complete set: supplied with 2 posts measuring 60x60x2mm and an RVS-Locinox lock
• Stable construction: made with square steel tube profiles
• Durable finish: hot-dip galvanised according to EN ISO 1461 and finished with polyester powder coating
• Double wire panel infill: 8/6/8 with a mesh size of 50x200mm
• Practical hinges: reversible and rotatable through 180°
• Vandal-resistant: designed for a strong and stable enclosure
• 25-year warranty

Metal garden gate for double wire fence panels

This metal garden gate is designed for use with double wire fence panels and provides a convenient pedestrian access point within your fence. With a height of 203cm and a width of 100cm, the gate is suitable for various garden and property applications. The double wire panel infill complements a fence made with matching double wire fence panels.

The gate can be installed as a standalone access gate or combined with powder-coated double wire fence panels. This allows you to create a consistent metal fencing system with a matching access point. Matching fence gates and components are also available.

Strong steel construction

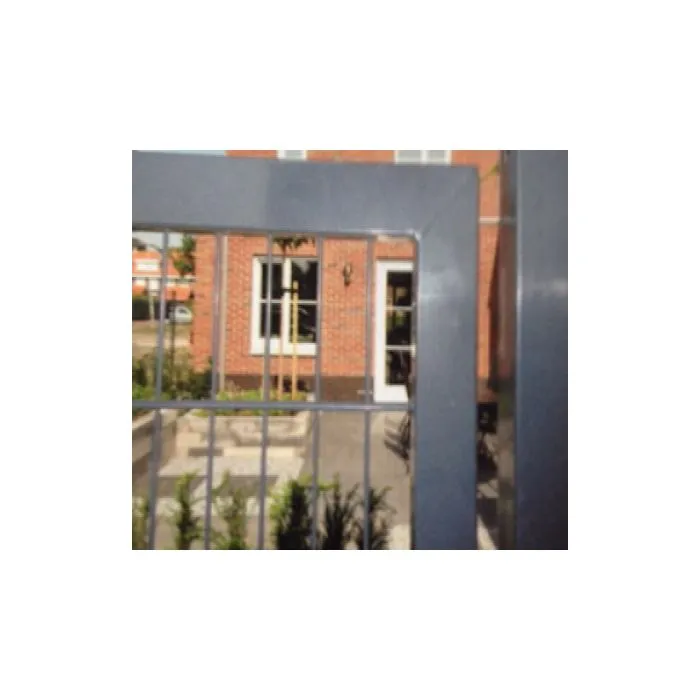

The frame of the garden gate is made from a square steel tube profile measuring 40x40x2mm. The gate infill consists of a standard 8/6/8 double wire fence panel with a mesh size of 50x200mm. The combination of the steel frame and double wire infill provides a stable construction for enclosing and securing a garden, property or other area.

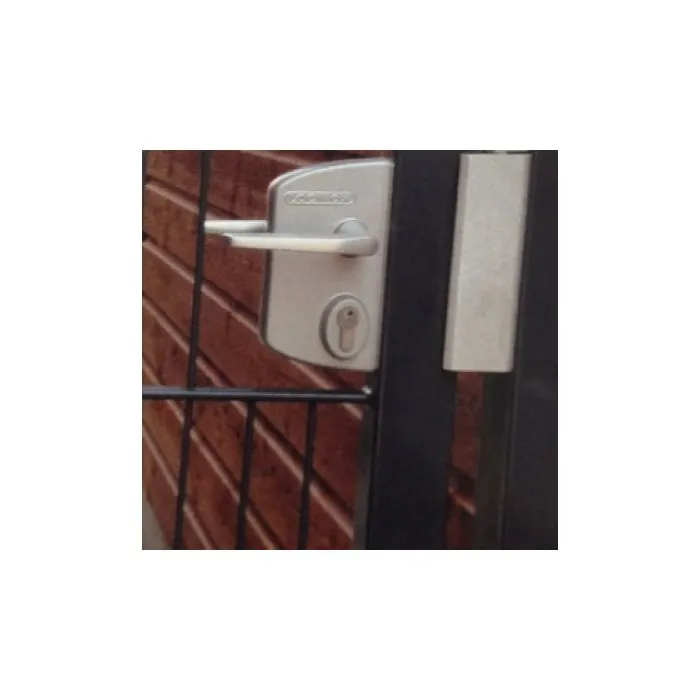

The gate is supplied with two square posts measuring 60x60x2mm. The posts are extended by 600mm and are designed for installing the gate. The RVS-Locinox lock provides a practical way to close the gate.

Hot-dip galvanised and powder coated

The metal garden gate is hot-dip galvanised according to EN ISO 1461 and then finished with a polyester powder coating. This combines a galvanised steel base with a coloured powder-coated finish. Standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

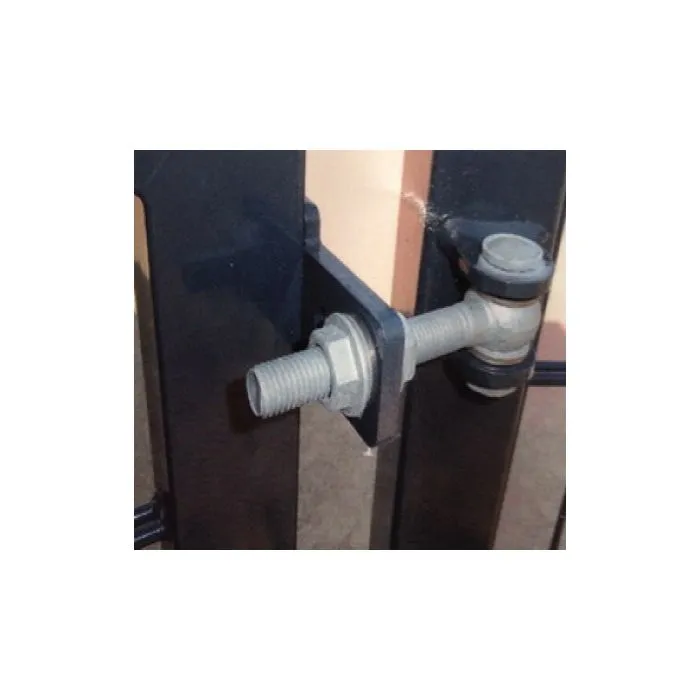

Reversible hinges

The hinges of the metal garden gate are reversible and can rotate through 180°. This allows the opening direction to be adapted to the installation situation. It provides additional flexibility when positioning the gate within your fence system.

Specifications

Installing the garden gate

1. Determine the desired position of the garden gate within the fence.
2. Position the two supplied posts at the correct distance from each other.
3. Make sure the posts are installed securely and straight.
4. Install the gate between the posts using the supplied hinge construction.
5. Adjust the reversible hinges and select the required opening direction.
6. Check that the gate opens and closes freely and adjust the lock as required.

Combine with double wire fence panels and accessories

For a complete metal fencing system, you can combine this garden gate with powder-coated double wire fence panels. Matching fence posts and fence accessories are available for completing the installation.

Frequently asked questions

What are the dimensions of this metal garden gate?

This metal garden gate is 203cm high and 100cm wide.

Is this garden gate suitable for double wire fence panels?

Yes, the gate has an 8/6/8 double wire panel infill and is designed to be combined with double wire fence panels.

Is the garden gate supplied as a complete set?

Yes, the garden gate is supplied with two 60x60x2mm posts, extended by 600mm, and an RVS-Locinox lock.

What finish does the garden gate have?

The garden gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Can the opening direction of the gate be changed?

Yes, the hinges are reversible and can rotate through 180°.

What is the mesh size of the gate infill?

The gate infill has a mesh size of 50x200mm and consists of an 8/6/8 double wire fence panel.

How long is the warranty?

This metal garden gate comes with a 25-year warranty.

A durable garden gate for your fence

With this 203x100cm powder-coated metal garden gate, you can create a practical access point within your fence. The combination of the square steel tube frame, double wire panel infill, hot-dip galvanising and polyester powder coating provides a stable and durable gate solution. Supplied with two posts, an RVS-Locinox lock and reversible hinges, this garden gate offers a complete solution for your garden, property or fenced area.
