Wire mesh fence gate 163x100cm

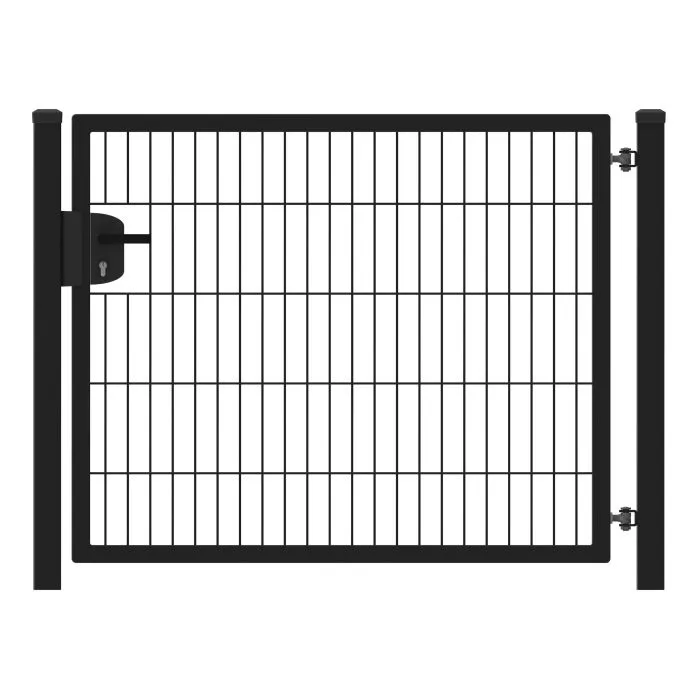

Powder-Coated Metal Garden Gate for Double Wire Fence 163x100cm

This powder-coated metal garden gate for double wire fencing measures 163 x 100cm (H x W) and is suitable as a standalone pedestrian gate or as part of a complete double wire fence system. The gate features a stable frame made from square steel tube profiles and a standard 8/6/8 double wire panel infill with a mesh size of 50 x 200mm. It is fitted with an RVS-Locinox lock and reversible hinges that can rotate through 180°. The gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. Standard colours include RAL 6005, RAL 6009, RAL 7016 and RAL 9005.

Key benefits of the metal garden gate

• Dimensions: 163 x 100cm (H x W)
• Stable construction with square steel tube profiles
• Standard 8/6/8 double wire panel infill
• Mesh size of 50 x 200mm
• RVS-Locinox lock
• Reversible hinges with 180° rotation
• Hot-dip galvanised according to EN ISO 1461 with polyester powder coating
• 25-year warranty

Metal garden gate for double wire fencing

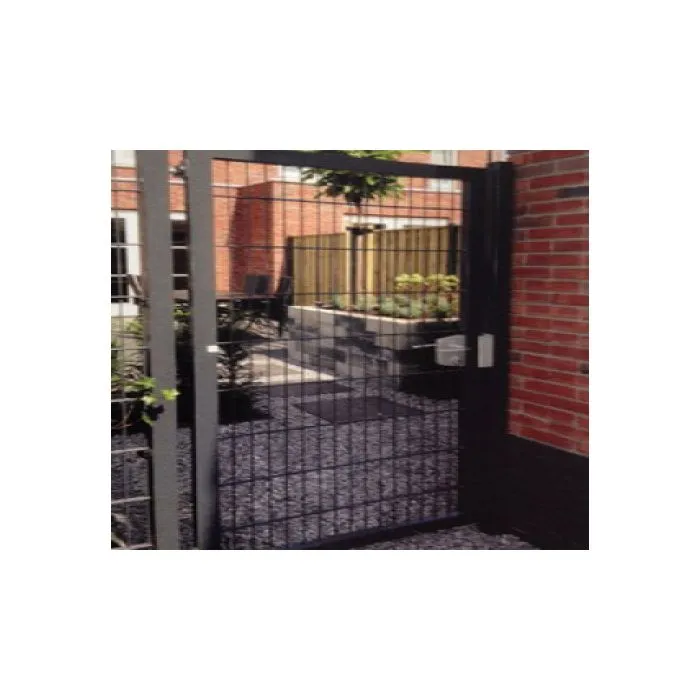

The 163 x 100cm metal garden gate has been designed specifically for use with double wire fencing. It can be installed as a standalone pedestrian gate or incorporated into a complete double wire fence system. The double wire infill gives the gate a matching appearance when combined with double wire fence panels.

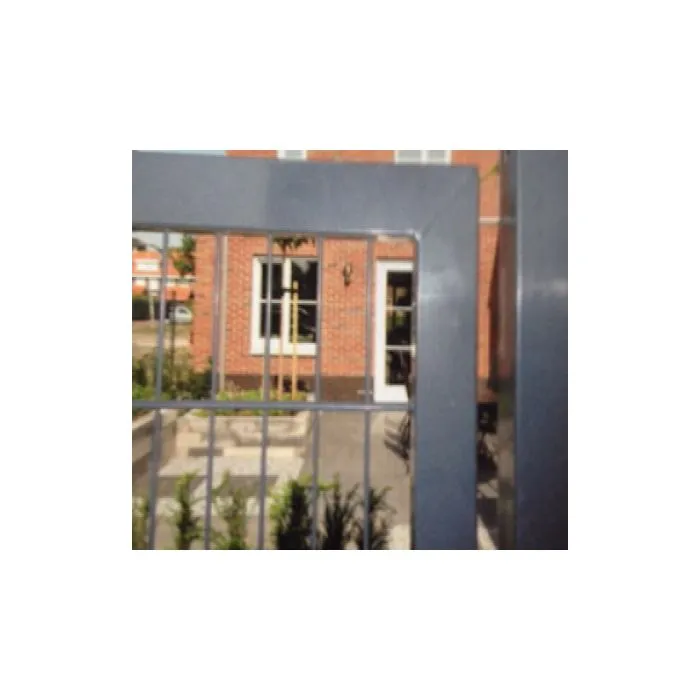

The frame is made from square steel tube profiles measuring 40 x 40 x 2mm. The standard infill consists of an 8/6/8 double wire panel with a mesh size of 50 x 200mm. This makes it suitable for creating a matching access point within a double wire fence.

Hot-dip galvanised and powder coated

The garden gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. This combination of finishes is suitable for use as a metal garden gate in an outdoor fence system.

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request, allowing the gate to be matched to the desired fence finish.

Stable steel frame and practical design

The gate frame is made from square steel profiles measuring 40 x 40 x 2mm. The construction provides a high level of stability. The garden gate is also extremely durable and vandal-resistant.

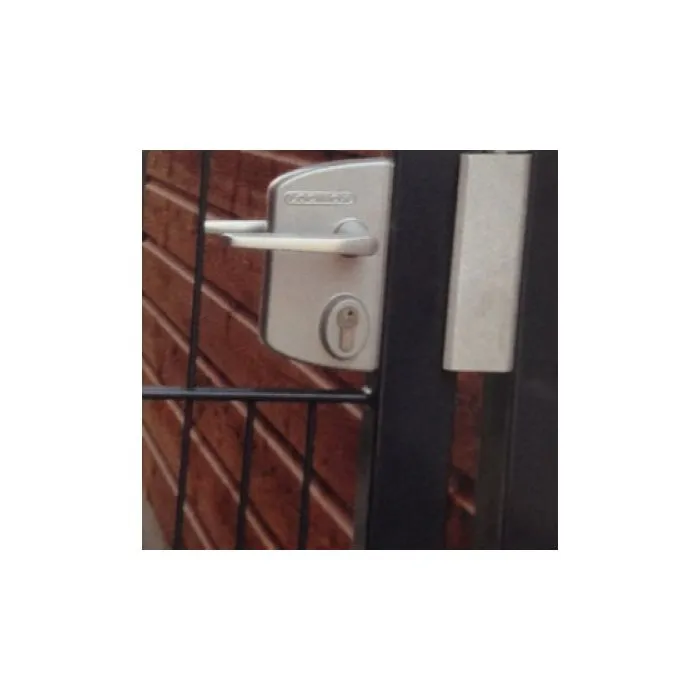

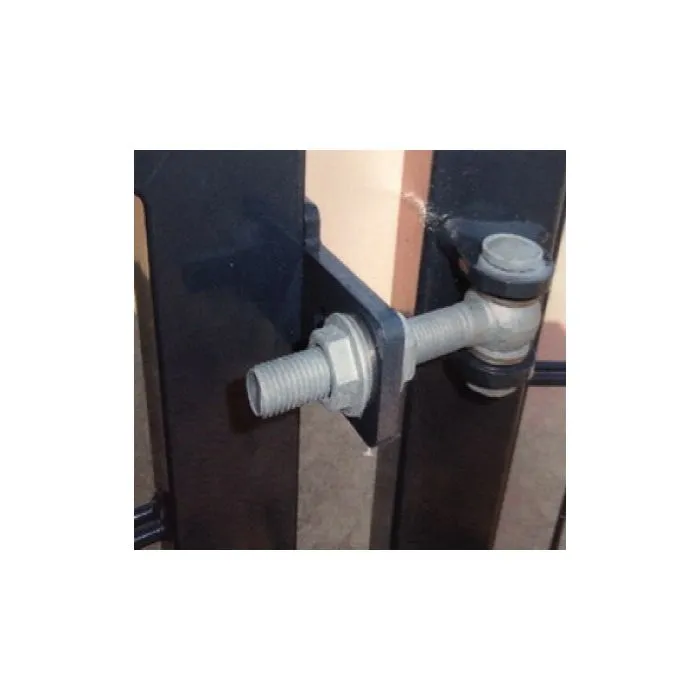

The gate is fitted with an RVS-Locinox lock for closing. The hinges are reversible and can rotate through 180°, allowing the preferred opening direction to be taken into account during installation.

Combine the garden gate with double wire fencing

The garden gate can be combined with powder-coated double wire fence panels to create a complete metal fencing system. Matching double wire fence posts and fence accessories are also available for installation.

Specifications of the 163x100cm metal garden gate

Installing the garden gate

The metal garden gate is installed within a double wire fence system. When installing the gate, take the desired position and opening direction into account. The reversible hinges and 180° rotation allow the gate to be installed according to the required opening direction.

1. Determine the desired position of the garden gate within the fence.
2. Position the corresponding gate posts correctly.
3. Attach the gate to the posts using the hinges.
4. Check that the gate is correctly aligned.
5. Check the operation of the RVS-Locinox lock.
6. Check the opening direction and adjust the gate if necessary.

Frequently asked questions

What are the dimensions of the garden gate?

The garden gate measures 163 x 100cm, with a height of 163cm and a width of 100cm.

Is the garden gate suitable for double wire fencing?

Yes, the garden gate has a standard 8/6/8 double wire panel infill and is designed to be combined with double wire fencing.

What mesh size does the gate infill have?

The double wire panel infill has a mesh size of 50 x 200mm.

What finish does the garden gate have?

The garden gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Which lock is fitted to the garden gate?

The garden gate is fitted with an RVS-Locinox lock.

Can the hinges be adjusted for the opening direction?

Yes, the hinges are reversible and can rotate through 180°, allowing the preferred opening direction to be taken into account during installation.

How long is the warranty?

The metal garden gate comes with a 25-year warranty.

163x100cm metal garden gate for a complete fence system

This 163 x 100cm metal garden gate provides a practical pedestrian entrance within a double wire fence. The combination of a stable steel frame, 8/6/8 double wire infill, RVS-Locinox lock and hot-dip galvanised and powder-coated finish makes the gate suitable for a range of outdoor fencing applications. Combine the gate with double wire fence panels, matching posts and accessories to create a complete and coordinated fencing system.
