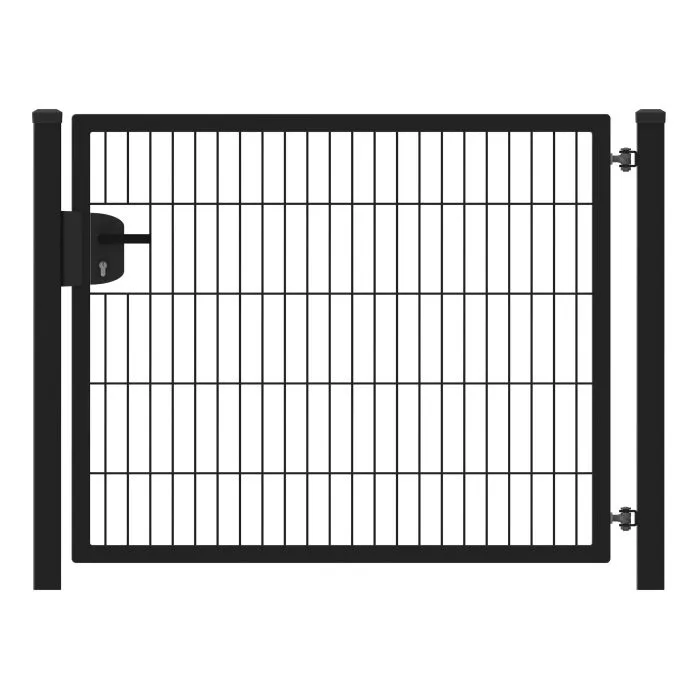

Wire mesh fence gate 123x100cm

Powder-Coated Metal Garden Gate 123x100cm for Double Wire Fencing

This powder-coated metal garden gate measuring 123x100cm is a practical and durable pedestrian gate for enclosing gardens, private grounds and other outdoor areas with double wire fencing. The gate combines a sturdy steel frame with a double wire panel infill and is finished with a polyester powder coating. The 40x40x2mm square steel tube frame provides high stability, while the RVS-Locinox lock offers reliable closing. Thanks to the reversible hinge, which can be rotated through 180°, the gate can be adapted to the desired opening direction. The gate is available separately or as part of a complete double wire fencing system.

Key benefits

• Metal garden gate measuring 123x100cm (HxW)
• Suitable for double wire fencing systems
• Double wire panel infill 8/6/8 with 50x200mm mesh size
• Stable 40x40x2mm square steel tube frame
• Hot-dip galvanised according to EN ISO 1461 and finished with polyester powder coating
• Fitted with an RVS-Locinox lock
• Reversible hinge with 180° rotation
• Available in RAL 6005, RAL 6009, RAL 7016 and RAL 9005
• 25-year warranty

Metal garden gate 123x100cm with double wire panel

This metal garden gate is designed as a pedestrian gate for double wire fencing. With a height of 123cm and a width of 100cm, the gate provides a convenient access point without requiring a large opening. The integrated double wire panel matches the construction of double wire fencing and creates a consistent appearance throughout the fence.

The gate can be purchased separately or combined with double wire fencing. This makes it possible to create a complete fencing system with matching panels, posts, accessories and a gate.

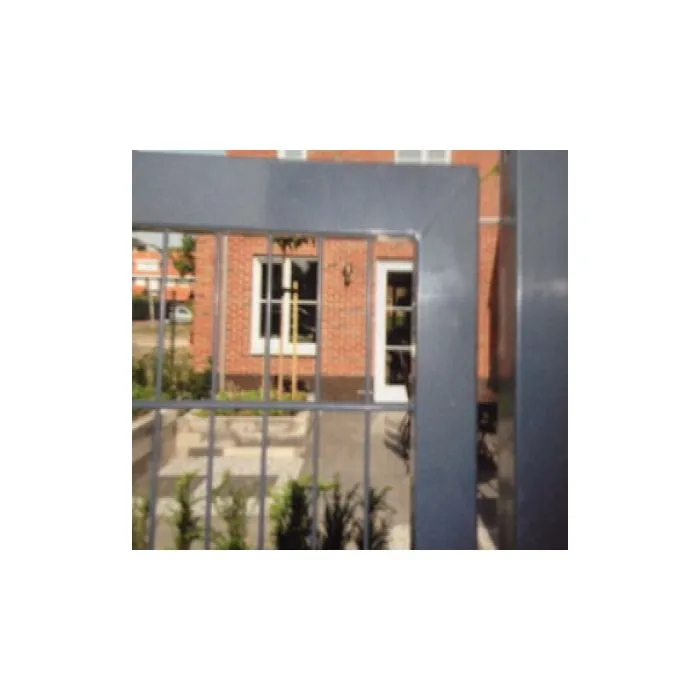

Stable steel frame

The frame is manufactured from square steel tube with dimensions of 40x40x2mm. This construction provides the gate with high stability and a solid appearance. The infill consists of a double wire panel in 8/6/8 configuration, with a mesh size of 50x200mm.

The combination of the steel frame and double wire panel makes the gate suitable for use as an access point in gardens and other enclosed outdoor areas. The gate is designed to match double wire fencing systems both functionally and visually.

Hot-dip galvanised and powder-coated finish

The gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. This combination provides the specified surface finish and allows the gate to be integrated neatly into a coloured fencing system.

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request. The gate is described as extremely durable and vandal-resistant and comes with a 25-year warranty.

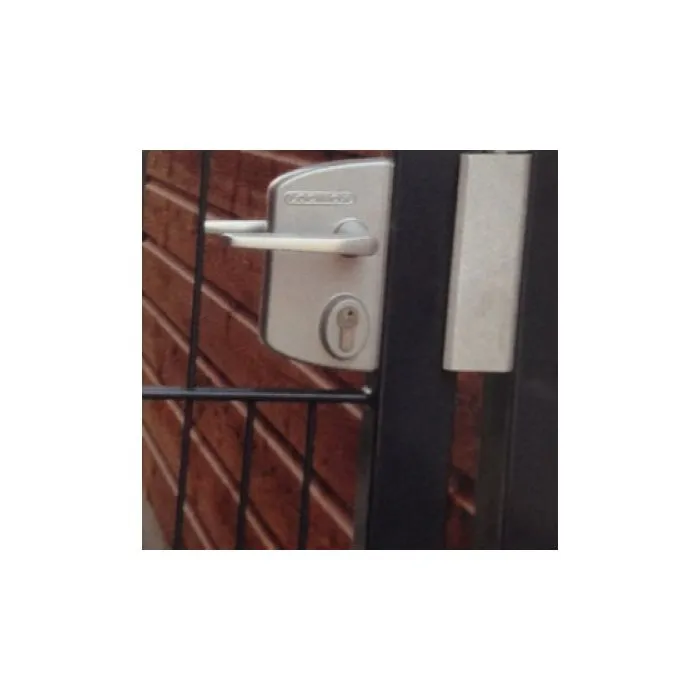

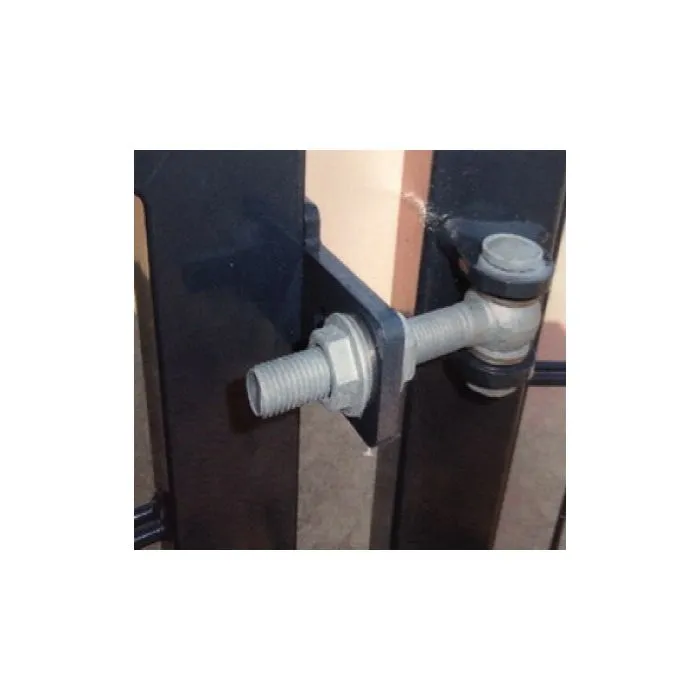

RVS-Locinox lock and reversible hinge

The garden gate is equipped with an RVS-Locinox lock. The gate also features a reversible hinge that can be rotated through 180°. This allows the hinge configuration to be adapted to the desired installation situation and opening direction.

For a complete installation, you can combine the gate with suitable wire fence posts and wire fence accessories.

Where is this garden gate suitable for?

This 123x100cm metal garden gate is suitable wherever you want to create a pedestrian entrance in a double wire fencing system. It can be used for gardens, private grounds and other outdoor areas where a separate access point is required. The 100cm width provides a practical passage for pedestrians.

How do you install the garden gate?

1. Determine the desired location and opening direction of the gate.
2. Position the gate posts at the correct distance for the 100cm wide gate.
3. Install and secure the posts according to the selected fencing system.
4. Mount the gate using the reversible hinges.
5. Adjust the hinges and check that the gate opens and closes correctly.
6. Check the RVS-Locinox lock and ensure that the gate closes securely.

For matching components, view the complete range of double wire fence panels, wire fence panel posts and fence gates.

Specifications

Frequently asked questions

What are the dimensions of the garden gate?

The garden gate measures 123cm high and 100cm wide.

Is this gate suitable for double wire fencing?

Yes, this garden gate is specifically designed for use with double wire fencing and has a matching 8/6/8 double wire panel infill.

What is the mesh size of the gate infill?

The mesh size of the double wire panel infill is 50x200mm.

What is the frame made of?

The frame is made from square steel tube measuring 40x40x2mm.

Is the gate galvanised?

Yes, the gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Does the gate have an adjustable opening direction?

Yes, the gate has a reversible hinge that can be rotated through 180°, allowing the installation to be adapted to the desired opening direction.

Does the garden gate come with a warranty?

Yes, this garden gate comes with a 25-year warranty.

Complete your double wire fencing system

Create a complete and matching fencing system by combining this metal garden gate with double wire fence panels, suitable posts and fencing accessories. View the available double wire fence panels, wire fence posts, wire fence accessories and fence gates.
