Wire mesh fence gate 103x100cm

Metal Garden Gate for Double Wire Fencing 103x100 cm Powder Coated

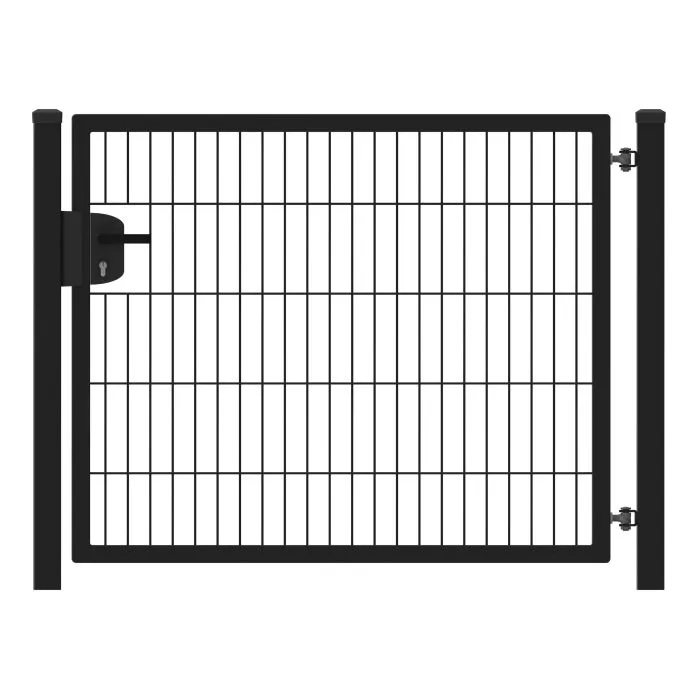

This metal garden gate for double wire fencing is 103 cm high and 100 cm wide, providing a practical access point to your garden, property or grounds. The gate features a standard double wire panel infill with 8/6/8 wire configuration and a mesh size of 50 x 200 mm. The stable frame is made from 40 x 40 x 2 mm square steel tubing. The gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. With an RVS-Locinox lock and a reversible hinge that rotates through 180°, this metal garden gate is suitable for use as a pedestrian gate in combination with double wire fencing.

Benefits of the metal garden gate

• Dimensions: 103 x 100 cm (H x W)
• High stability thanks to the square steel tubing
• Extremely durable and vandal-resistant
• Standard 8/6/8 double wire panel infill with a mesh size of 50 x 200 mm
• Frame made from 40 x 40 x 2 mm square steel tubing
• Fitted with an RVS-Locinox lock
• Reversible hinge with 180° rotation
• 25-year warranty

Metal garden gate for double wire fencing

A garden gate provides a fixed and practical access point within a fence. This metal garden gate is specifically designed with a double wire panel infill, allowing it to blend naturally with a double wire fence. The gate measures 103 cm high and 100 cm wide and is designed for pedestrian access.

The garden gate can be used as a standalone gate or combined with double wire fence panels. This allows you to create an access point that matches the appearance of your existing or newly installed metal fence. Matching wire fence posts and wire fence accessories are also available for a complete fencing system.

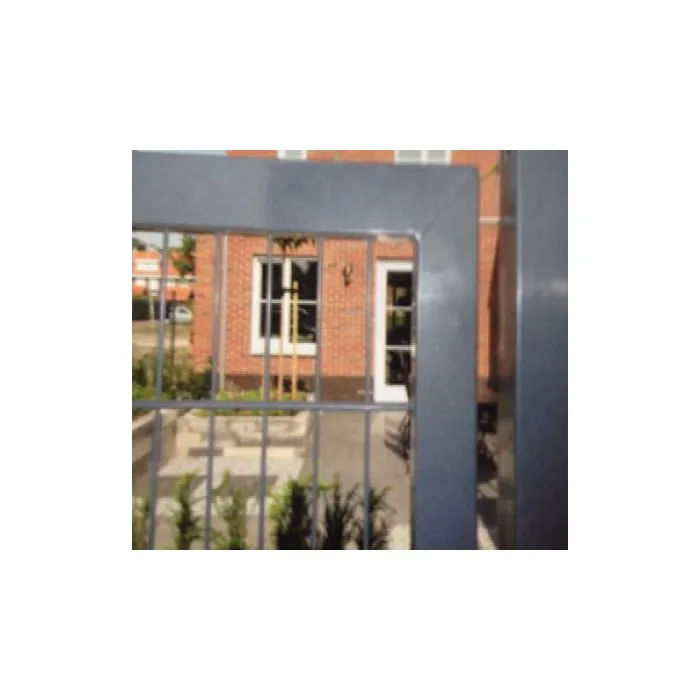

Stable 40 x 40 x 2 mm steel frame

The frame of the garden gate is made from square steel tubing measuring 40 x 40 x 2 mm. The square tube profile provides high stability for the gate. The infill consists of a standard 8/6/8 double wire panel with a mesh size of 50 x 200 mm.

8/6/8 double wire panel infill

The double wire panel infill matches the appearance of a double wire fence. This makes it possible to combine the garden gate with an existing or new metal fencing system. The open mesh structure creates a consistent appearance between the gate and the surrounding fence panels.

Powder-coated metal garden gate

The metal garden gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. Standard colours include RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

The combination of hot-dip galvanising and polyester powder coating makes the gate suitable for use with powder-coated double wire fence panels. If you want the gate and fence to have a matching appearance, the gate and fence panels can be selected in corresponding colours.

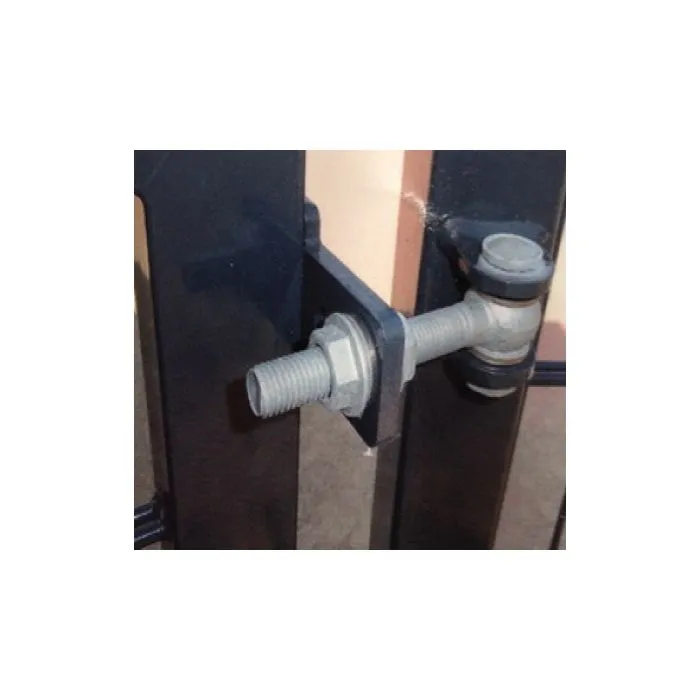

RVS-Locinox lock and reversible hinge

The garden gate is fitted with an RVS-Locinox lock. The hinge is reversible and rotates through 180°. This allows the gate to be installed according to the required opening direction.

For a complete access solution, combine the metal garden gate with matching fence gates and the appropriate components for your double wire fencing system.

Technical specifications

How do you install the garden gate?

1. Determine the position: Decide where the pedestrian gate will be installed within the fencing system.
2. Check the dimensions: Take the gate dimensions of 103 x 100 cm into account, as well as sufficient space for the hinge and opening direction.
3. Install the suitable posts: Use suitable wire fence posts for mounting the gate and connecting fence panels.
4. Mount the gate: Attach the garden gate to the posts and position the reversible hinge according to the required opening direction.
5. Check the lock: After installation, check that the RVS-Locinox lock closes correctly and that the gate opens and closes freely.

Combine the garden gate with double wire fencing

Would you like to create a complete fencing system with an access point? Combine this metal garden gate with matching double wire fence panels. The double wire infill of the gate complements the surrounding fence panels. Various wire fence accessories are available for completing the installation.

You can also choose matching wire fence panel posts when creating a complete double wire fencing system.

What is this metal garden gate suitable for?

This garden gate is suitable as a pedestrian gate within a double wire fencing system. Measuring 103 cm high and 100 cm wide, it provides practical pedestrian access. The metal construction and double wire panel infill make the gate suitable for gardens, properties and other areas where an access point is required within a double wire fence.

Frequently asked questions about the metal garden gate

What are the dimensions of the metal garden gate?

The metal garden gate measures 103 x 100 cm (H x W).

What type of infill does the garden gate have?

The garden gate has a standard 8/6/8 double wire panel infill with a mesh size of 50 x 200 mm.

What is the gate frame made of?

The frame is made from 40 x 40 x 2 mm square steel tubing.

What finish does the garden gate have?

The garden gate is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Does the garden gate include a lock?

The garden gate is fitted with an RVS-Locinox lock.

Can the hinge be adjusted?

The hinge is reversible and rotates through 180°.

How long is the warranty?

This metal garden gate comes with a 25-year warranty.

Metal garden gate 103x100 cm for double wire fencing

This powder-coated metal garden gate provides a matching pedestrian access point within a double wire fencing system. The steel frame, 8/6/8 double wire panel infill, RVS-Locinox lock, reversible hinge and hot-dip galvanised finish with polyester powder coating make this gate suitable for a complete metal fencing system.
