Double Wire Fence Panel 83x251cm PVC coated

Double Wire Fence Panel 83x251cm Hot-Dip Galvanised and Powder Coated

This double wire fence panel 83x251cm is a practical solution for creating a neat and clearly defined fence around a garden, property or other outdoor area. The panel is 83cm high and 251cm wide and is supplied as a complete set including the fence panel, post and fixing materials. The steel is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. The mesh size is 50 x 200mm. With several available heights and standard colours, you can create a double wire fence that matches your requirements and the desired appearance of your property.

Benefits of the 83x251cm double wire fence panel

• Complete set: supplied with fence panel, post and fixing materials.
• 83x251cm size: 83cm high and 251cm wide.
• 50 x 200mm mesh: provides a consistent and clearly defined mesh pattern.
• Hot-dip galvanised: galvanised according to EN ISO 1461.
• Polyester powder coated: finished with a coloured powder coating.
• Several standard colours: available in RAL 6005, RAL 6009, RAL 7016 and RAL 9005.
• Several heights available: available from 63cm up to 243cm.
• 25-year warranty: supplied with a 25-year warranty.

Double wire fence panel 83x251cm for a complete fence

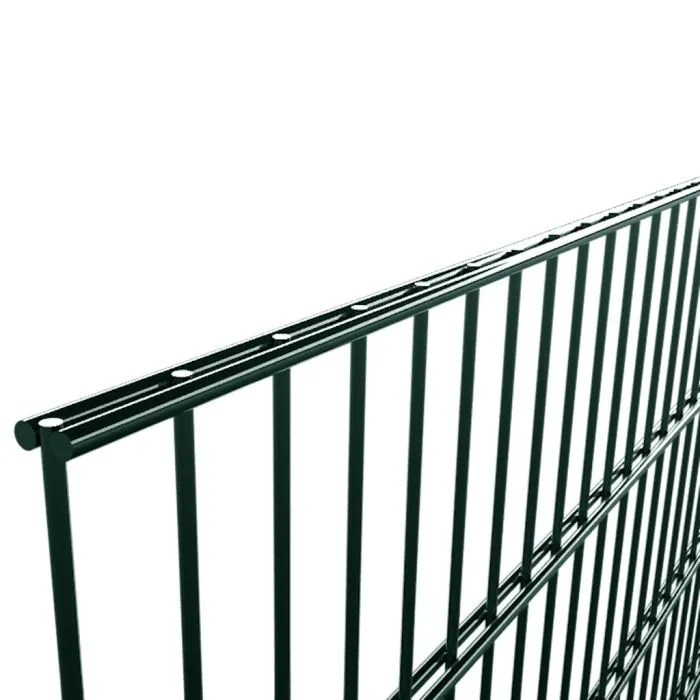

A double wire fence panel consists of horizontal and vertical steel wires that form a regular mesh structure. This version has 2 x Ø6mm horizontal wires and 1 x Ø5mm vertical wires. The mesh size is 50 x 200mm.

The product dimensions are 83 x 251cm, with 83cm referring to the height and 251cm to the width of the panel. The standard width of 251cm makes it possible to combine several panels to create a complete fence system. Discover the full range of powder coated double wire fence panels for additional options.

Hot-dip galvanised and powder coated

This double wire fence panel is hot-dip galvanised according to EN ISO 1461 and then finished with a polyester powder coating. The combination of galvanising and powder coating gives the panel its specified surface finish and colour.

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request. This allows you to select an appearance that fits the surroundings of your garden or property.

Specifications of the double wire fence panel 83x251cm

Posts and fixing materials for double wire fence panels

A suitable post and fixing system are required to install the double wire fence panels. This version is supplied as a complete set with the panel, post and fixing materials. For additional or individual posts, see the available wire fence posts.

For additional installation components, you can also view the wire fence accessories. This allows you to select the components required for your fence installation.

Combine a double wire fence with a gate

A double wire fence can be combined with a matching gate to create a practical access point. A suitable fence gate can be incorporated into the fence layout, providing convenient access to the garden or property.

Other heights and fence configurations

This double wire fence panel is 83cm high and 251cm wide. Other panel heights are available from 63cm to 243cm, allowing you to select a height that suits your intended application.

Other formats, mesh sizes and lengths are also available on request. If you require a different configuration, please contact us to discuss the available options.

Installing a double wire fence panel

1. Plan the fence line: determine the position of the fence and take the standard 251cm panel width into account.
2. Position the posts: place the posts at the required spacing for the double wire fence panels.
3. Position the panel: place the fence panel between the posts.
4. Secure the panel: attach the panel using the appropriate fixing materials.
5. Check the alignment: make sure the panels are straight and correctly aligned during installation.
6. Complete the fence: install additional panels and add a suitable gate where required.

Frequently asked questions about the double wire fence panel 83x251cm

What are the dimensions of this double wire fence panel?

The double wire fence panel is 83cm high and 251cm wide. The 83x251cm measurement refers to the product dimensions of the fence panel.

What is the mesh size?

The mesh size is 50 x 200mm. This is the mesh measurement and is separate from the overall panel dimensions of 83x251cm.

Is the double wire fence panel powder coated?

Yes, the panel has a polyester powder coating. It is also hot-dip galvanised according to EN ISO 1461.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

What is included in the complete set?

The complete set includes the double wire fence panel, a post and fixing materials. Additional posts and accessories are also available separately.

Are other fence heights available?

Yes, double wire fence panels are available in heights from 63cm to 243cm. This allows you to select a suitable height for your fence.

Can the panel be combined with a fence gate?

Yes, the double wire fence panel can be combined with a suitable fence gate. See the available fence gates for a matching access solution.

Double wire fence panel 83x251cm

The double wire fence panel 83x251cm provides a complete solution for creating a clearly defined metal fence. The panel is 83cm high and 251cm wide, with a mesh size of 50 x 200mm. It is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. The complete set includes the fence panel, post and fixing materials. With several available heights, standard colours and options for other formats, mesh sizes and lengths on request, the system can be adapted to different fence applications.

Related wire fence systems

For alternative installation options, you can also view the wire fence panel posts. These can be used when configuring a suitable wire panel fence system.
