Double Wire Fence Panel 243x251cm PVC coated

Double Wire Fence Panel 243x251 cm Powder Coated

Our double wire fence panels 243x251 cm are a high-quality solution for creating a tall, neat and durable metal fence. The complete set consists of a fence panel, post and fixing materials, making it suitable for a straightforward installation. The panels are hot-dip galvanised in accordance with EN ISO 1461 and finished with a polyester powder coating for an attractive appearance. With a width of 251 cm and a height of 243 cm, this is one of the tallest standard double wire fence panel sizes available. Other heights, colours, mesh sizes and panel lengths are available on request.

Key benefits

• Very tall double wire fence panel measuring 243x251 cm
• Complete set including panel, post and fixing materials
• Hot-dip galvanised in accordance with EN ISO 1461
• Finished with a polyester powder coating
• Mesh size of 50x200 mm
• Horizontal wires: 2 x Ø6 mm
• Vertical wires: 1 x Ø5 mm
• 25-year warranty

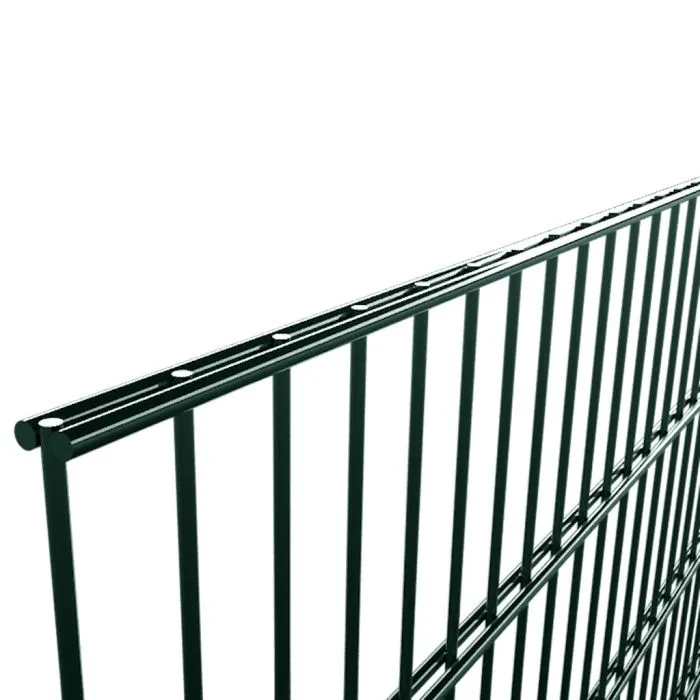

Double wire fence panel 243x251 cm

This double wire fence panel has a height of 243 cm and a standard width of 251 cm. The combination of the tall panel and 50x200 mm mesh makes it suitable for applications where a high metal boundary is required. The panel consists of two horizontal wires of Ø6 mm and one vertical wire of Ø5 mm. This construction gives the fence its characteristic double wire design.

The panels are supplied as a complete set with the required post and fixing materials. This makes it easier to put together a complete fencing system without having to source each component separately. Matching wire fence posts and fence accessories are also available separately for additional or replacement installations.

Hot-dip galvanised and powder coated

The double wire fence panel is hot-dip galvanised in accordance with EN ISO 1461 and subsequently finished with a polyester powder coating. The galvanised steel forms the basis of the panel, while the powder-coated finish provides the chosen colour and a consistent appearance throughout the fencing system.

Standard colours include RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours can be supplied on request. This allows the fence to be matched to the surrounding garden, property or other outdoor elements.

Specifications

Complete fencing system

For a complete installation, the 243x251 cm panels can be combined with matching posts and fixing materials. Our wire fence panel posts are suitable for creating a complete panel-and-post system. Depending on the layout of the boundary, additional wire fence accessories can be used to complete the installation.

Where access through the fence is required, the fencing can also be combined with a matching fence gate. This allows the fence and access point to form a coordinated system.

Available heights and options

Although this model has a height of 243 cm, double wire fence panels are available in various heights from 63 to 243 cm. This makes it possible to select a suitable height for different fencing requirements. Other formats, mesh sizes and panel lengths can also be supplied on request.

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. If a different colour is required, other RAL colours are available on request, subject to availability.

Installation of the double wire fence

Before installation, determine the position of the fence and mark out the locations of the posts. Install the posts at the required spacing and ensure that they are correctly aligned and positioned vertically. The fence panels can then be attached to the posts using the appropriate fixing materials.

1. Mark out the fence line and post positions.
2. Install the posts at the correct spacing.
3. Check that the posts are level and correctly aligned.
4. Position the 243 cm high fence panels between the posts.
5. Secure the panels using the appropriate fixing materials.
6. Check the complete fence for alignment and stability.

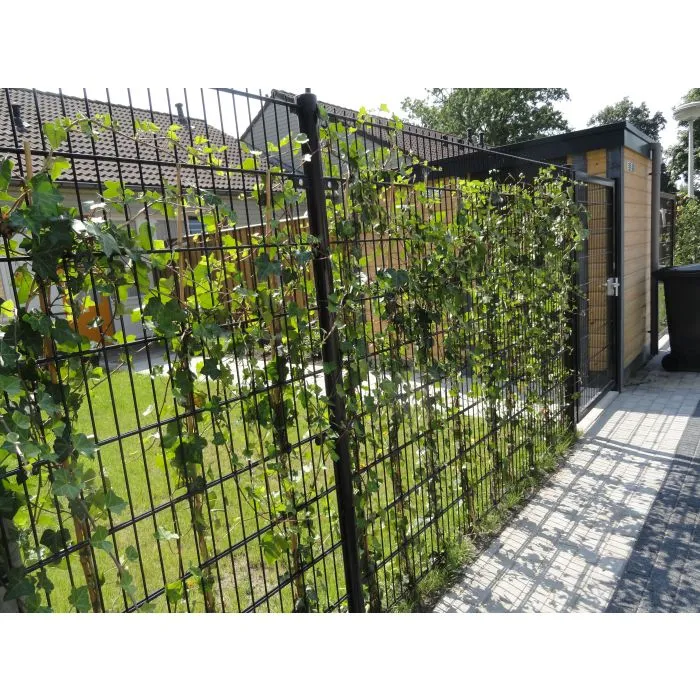

What are double wire fence panels suitable for?

A 243 cm high double wire fence is suitable when a particularly tall metal boundary is required. The 251 cm panel width makes it possible to cover a substantial length with relatively few panels. The open mesh structure retains the characteristic appearance of a wire panel fence while creating a clearly defined boundary.

The panels can be used around gardens, private properties and other outdoor areas where a high metal fence is required. The choice of height, colour and matching components can be adapted to the intended application.

Combine with other fencing components

For a complete fencing solution, combine the double wire panels with matching wire fence posts, fence accessories and a matching fence gate. This allows you to create a complete and coordinated fence system.

Frequently asked questions

What are the dimensions of the double wire fence panel?

The panel measures 243 cm high and 251 cm wide.

What is the mesh size?

The mesh size is 50x200 mm.

What wire thicknesses are used?

The panel has two horizontal wires of Ø6 mm and one vertical wire of Ø5 mm.

Is the panel galvanised?

Yes. The panel is hot-dip galvanised in accordance with EN ISO 1461 and finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Are matching posts and accessories available?

Yes. Matching posts and fixing materials are available to create a complete double wire fencing system.

Can the fence be combined with a gate?

Yes. A matching fence gate can be added where access through the fence is required.

Is there a warranty?

Yes. The double wire fence panels come with a 25-year warranty.

Order double wire fence panels 243x251 cm

With their 243 cm height, 251 cm width, hot-dip galvanised finish and polyester powder coating, these double wire fence panels are suitable for creating a tall and coordinated metal fence. The complete set includes the panel, post and fixing materials, while matching posts, accessories and gates are available for expanding the fencing system. Other heights, colours, mesh sizes and lengths can be supplied on request.
