Double Wire Fence Panel 223x251cm PVC coated

Double Wire Fence Panel 223x251cm Powder Coated

These double wire fence panels 223x251cm provide a high metal fencing solution with a clean and timeless appearance. The panel is 251cm wide and 223cm high, making it suitable for applications where a high fence is required. The panels are hot-dip galvanised in accordance with EN ISO 1461 and then finished with a polyester powder coating. The double wire fence panels are supplied as a complete set consisting of the fence panel, post and fixing materials.

Benefits of the 223x251cm Double Wire Fence Panel

• Complete set including fence panel, post and fixing materials
• High 223cm panel height
• Standard panel width of 251cm
• Hot-dip galvanised in accordance with EN ISO 1461
• Finished with a polyester powder coating
• Mesh size of 50 x 200mm
• Available in standard RAL 6005, RAL 6009, RAL 7016 and RAL 9005
• 25-year warranty

Powder Coated Double Wire Fence Panel 223x251cm

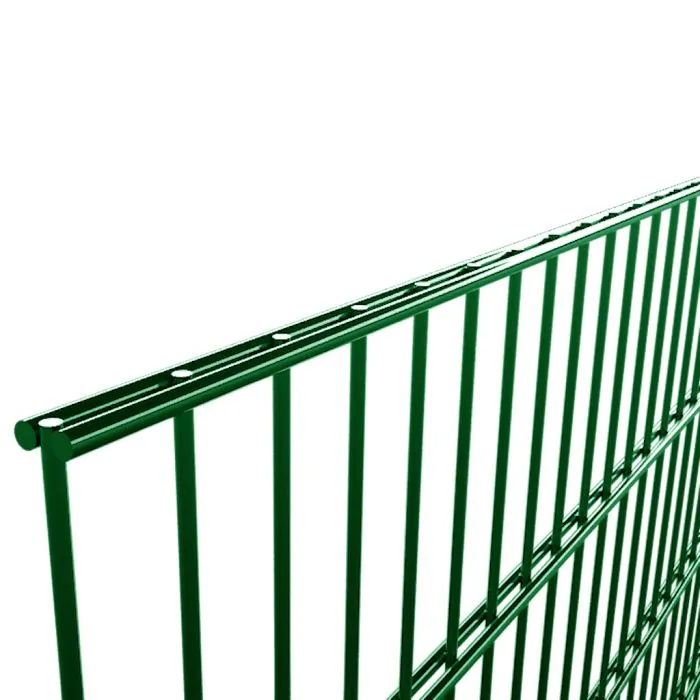

A double wire fence panel consists of horizontal and vertical steel wires that form a neat and uniform mesh structure. This version has two horizontal wires of Ø6mm and one vertical wire of Ø5mm. The mesh size is 50 x 200mm.

With a height of 223cm, this panel is suitable for creating a high fence around a garden, property or other outdoor area. The standard width is 251cm, allowing multiple panels to be installed alongside each other to create a continuous fence line.

Technical specifications

Complete Double Wire Fence Set

The double wire fence panels are supplied as complete sets. Each set consists of the fence panel, a suitable post and fixing materials. With a standard panel width of 251cm, several panels can be combined to create a continuous fence along a property boundary, garden or other outdoor area.

For convenient access through the fence, matching fence gates are available as an optional addition. This allows you to create a complete fencing system with a matching entrance.

Posts and Accessories for Double Wire Fence Panels

Suitable wire fence posts are available for installing the panels. You can also complete the fencing system with suitable wire fence accessories for the installation and finishing of your fence.

If you prefer a different construction, wire fence panel posts are also available. This gives you the option to select the components that best match the desired fencing system.

Available Heights, Colours and Options

The double wire fence panels are available in heights from 63 to 243cm. This 223cm version is suitable when a high fence is required. Other formats, mesh sizes and lengths can be supplied on request.

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are also available on request, allowing the appearance of the fence to be adapted to your requirements.

Installing the Double Wire Fence Panels

When installing the double wire fence panels, first determine the position and layout of the fence. The posts are then positioned according to the panel width of 251cm. The panels are aligned between the posts and secured using the appropriate fixing materials. Proper planning of the fence line helps ensure that the panels are positioned correctly.

Installation step by step

1. Determine the route and total length of the planned fence.
2. Mark the positions of the posts according to the 251cm panel width.
3. Install the posts in the planned positions.
4. Position the double wire fence panels between the posts.
5. Secure the panels using the appropriate fixing materials.
6. Check the alignment and height of the complete fence.
7. Add a matching fence gate if required.

Frequently Asked Questions about the 223x251cm Double Wire Fence Panel

What are the dimensions of this double wire fence panel?

This double wire fence panel is 223cm high and has a standard width of 251cm.

Is the panel supplied as a complete set?

Yes, the double wire fence panel is supplied as a complete set including the fence panel, post and fixing materials.

What is the mesh size?

The mesh size is 50 x 200mm.

How is the double wire fence panel finished?

The panel is hot-dip galvanised according to EN ISO 1461 and subsequently finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Are other heights available?

Yes, double wire fence panels are available in heights from 63 to 243cm. Other formats can be supplied on request.

Is a matching gate available?

Yes, matching fence gates are available as an optional addition.

223cm High Double Wire Fence Panel for a Complete Fence

The 223x251cm double wire fence panel provides a high and neatly finished solution for fencing gardens, properties and other outdoor areas. The complete set includes the fence panel, post and fixing materials, allowing you to create a suitable fencing system. The combination of hot-dip galvanising according to EN ISO 1461 and polyester powder coating provides a high-quality surface finish. With several standard colours, different available heights and a 25-year warranty, this double wire fence panel is a practical option for creating a high metal fence.
