Double Wire Fence Panel 203x251cm PVC coated
SKU 28412030
✅ Our double wire fence panels are sold per complete set (mesh panel + post + mounting material) with a standard width of 251cm
Characteristics double wire fence panel 203x251cm:
+ Width: 251cm
+ Height 203cm
+ Available heights: 63cm to 243cm
+ Mesh size: 50 x 200 mm
+ Horizontal wire rods: 2 x ø 6 mm
+ Vertical wire rods: 1 x ø 5 mm
+ Hot-dip galvanized according to EN ISO 1461
+ Standard colors: RAL 6005, 6009, 7016 & 9005, other colors available on request
+ Other formats, mesh sizes and lengths are of course available on request.
+ 25 years warranty
+ Garden gates available as an option
Delivery in 5-21 days
Product description

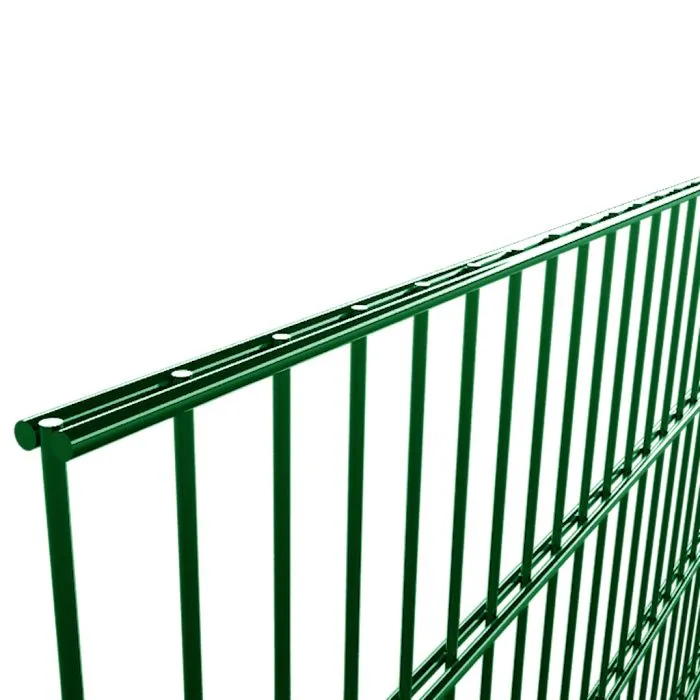

Double Wire Fence Panel 203x251cm Hot-Dip Galvanised and Powder Coated
The double wire fence panel 203x251cm is a practical solution for creating a high and clearly defined wire fence. The panel is 203cm high and has a standard width of 251cm. It is supplied as a complete set consisting of the wire fence panel, post and fixing materials. The mesh size is 50 x 200mm, with two horizontal wires of Ø6mm and one vertical wire of Ø5mm. The panel is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating.
Benefits of the 203x251cm double wire fence panel
- Height: 203cm
- Standard width: 251cm
- Mesh size: 50 x 200mm
- 2 horizontal wires of Ø6mm
- 1 vertical wire of Ø5mm
- Hot-dip galvanised according to EN ISO 1461
- Finished with a polyester powder coating
- Complete set with panel, post and fixing materials
- 25-year warranty
Specifications of the double wire fence panel
| Specification | Details |
|---|---|
| Type | Double wire fence panel |
| Height | 203cm |
| Width | 251cm |
| Mesh size | 50 x 200mm |
| Horizontal wires | 2 x Ø6mm |
| Vertical wire | 1 x Ø5mm |
| Finish | Hot-dip galvanised according to EN ISO 1461 and polyester powder coated |
| Warranty | 25 years |
Complete double wire fence set
The double wire fence panel is supplied as a complete set with the panel, corresponding post and fixing materials. With a standard panel width of 251cm, several panels can be installed alongside each other to create a continuous fence.
View the complete range of powder coated double wire fence panels to compare the different available heights.
Hot-dip galvanised and powder coated
This double wire fence panel is hot-dip galvanised according to EN ISO 1461 and additionally finished with a polyester powder coating. The combination of galvanising and powder coating distinguishes this version from a standard galvanised panel.
The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request. Other formats, mesh sizes and lengths can also be requested.
203cm high double wire fence panel
With a height of 203cm, this double wire fence panel can be used where a relatively high fence is required. The 251cm standard width allows multiple panels to be combined to create longer fence sections.
Other panel heights are available from 63cm up to 243cm. This makes it possible to select a panel height that matches the requirements of your fencing project.
Posts and fixing materials
A suitable post is an important part of a double wire fence system. You can find matching wire fence posts for use with wire fence panels.
For additional components required when installing your fence, see the range of wire fence accessories.
Matching fence gate
A matching gate can be added to provide convenient access through the fenced area. View the available double wire fence gates to complete your fencing system.
Wire fence panel posts
For projects using a wire panel system, suitable wire fence panel posts are also available. These can be considered when planning the post configuration for your fencing project.
How to install a 203x251cm double wire fence panel
- Plan the route of the fence and mark the positions of the posts.
- Allow for the standard panel width of 251cm when positioning the posts.
- Install the posts according to the chosen installation method.
- Position the 203cm high double wire fence panel between the posts.
- Secure the panel using the appropriate fixing materials.
- Check the alignment and height of the panel before continuing with the next section.
- Repeat the installation steps until the required fence length has been completed.
Frequently asked questions
What are the dimensions of the double wire fence panel?
The panel is 203cm high and 251cm wide.
What is the mesh size?
The mesh size is 50 x 200mm.
What are the wire diameters?
The panel has two horizontal wires with a diameter of 6mm and one vertical wire with a diameter of 5mm.
Is the panel hot-dip galvanised?
Yes, the panel is hot-dip galvanised according to EN ISO 1461.
Is the panel powder coated?
Yes, this version has an additional polyester powder coating.
Which colours are available?
The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.
Is the panel supplied as a complete set?
Yes, the set consists of the double wire fence panel, post and fixing materials.
Are other panel heights available?
Yes, double wire fence panels are available in different heights from 63cm up to 243cm.
Complete your double wire fencing system
To complete your fencing project, you can combine the 203x251cm double wire fence panel with matching wire fence posts, wire fence accessories and a suitable fence gate. For other post solutions, you can also view the wire fence panel posts.
Double wire fence panel 203x251cm
The double wire fence panel 203x251cm combines a 203cm height with a standard width of 251cm, a 50 x 200mm mesh size and a 6/5/6 wire configuration. The panel is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. With matching posts, accessories and gates available, you can assemble a complete double wire fencing system for your project.
