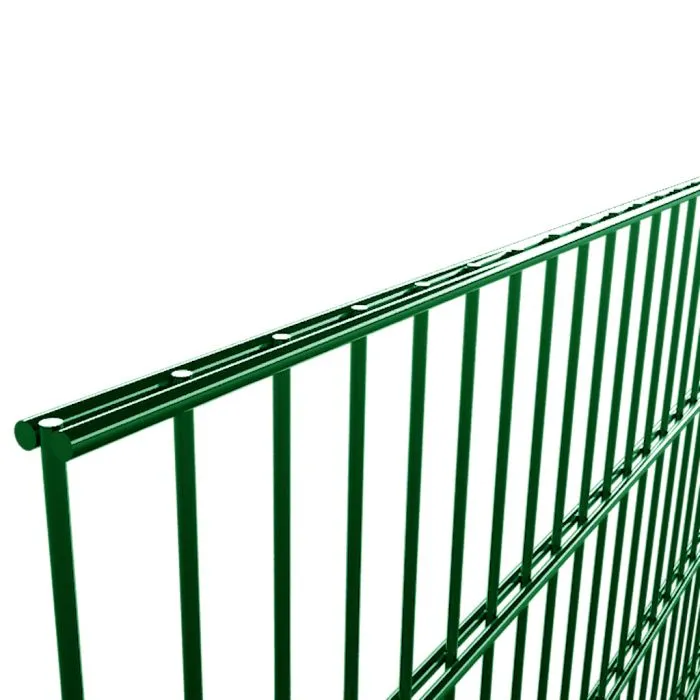

Double Wire Fence Panel 143x251cm PVC coated

Double Wire Fence Panel 143x251cm Hot-Dip Galvanised and Powder Coated

The Double Wire Fence Panel 143x251cm is a practical solution for creating a neat and clearly defined boundary around your garden, property or outdoor area. The panel measures 143cm high and 251cm wide and is supplied as a complete set with the fence panel, post and fixing materials. It is hot-dip galvanised according to EN ISO 1461 and finished with a polyester powder coating. With a mesh size of 50x200mm and a standard width of 251cm, the panels can be installed next to each other to create a consistent fencing system.

Discover our complete range of powder coated double wire fence panels for other heights and configurations.

Advantages of the Double Wire Fence Panel 143x251cm

• Complete set with fence panel, post and fixing materials
• Standard width of 251cm
• Height of 143cm
• Mesh size of 50x200mm
• 2 horizontal wires of Ø6mm
• 1 vertical wire of Ø5mm
• Hot-dip galvanised according to EN ISO 1461
• Finished with a polyester powder coating

143cm High Double Wire Fence Panel

With a height of 143cm, this double wire fence panel is suitable for various fencing and boundary applications. The standard width of 251cm allows multiple panels to be installed alongside each other, creating a continuous and uniform fence. The 50x200mm mesh gives the panel its characteristic structured appearance.

The panel consists of horizontal and vertical wires arranged in a double-wire configuration. The horizontal wires are 2 x Ø6mm, while the vertical wires have a diameter of Ø5mm. This combination creates the characteristic construction of a double wire fence panel.

Hot-Dip Galvanised and Powder Coated

The Double Wire Fence Panel 143x251cm is hot-dip galvanised according to EN ISO 1461 and subsequently finished with a polyester powder coating. Standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request, allowing the fencing to be adapted to different preferences and surroundings.

If you are looking for a different finish, you can also view our hot-dip galvanised double wire fence panels.

Complete Double Wire Fencing System

The double wire fence panel is supplied as a complete set consisting of the fence panel, post and fixing materials. This provides the main components required to install the fencing system.

For extending or adapting your fence, suitable wire fence posts are available. You can also use the appropriate wire fence accessories for connecting and securing the panels and posts.

Different Heights and Configurations

In addition to the 143cm height, double wire fence panels are available in heights from 63cm to 243cm. This allows you to select a suitable height for your fencing project. Other formats, mesh sizes and lengths are also available on request.

The standard width of 251cm makes it easy to plan the required number of panels. Multiple panels can be installed consecutively to create longer sections of fencing around a garden, property or other outdoor area.

Combine with a Matching Fence Gate

For convenient access to the enclosed area, the double wire fencing can be combined with a matching fence gate. A suitable gate can be incorporated into the fencing system while maintaining a consistent appearance.

How to Install the Double Wire Fence Panel

1. Determine the desired fence layout and total length.
2. Mark the positions of the posts, taking the panel width of 251cm into account.
3. Install the posts at the marked positions.
4. Position the double wire fence panel between the posts.
5. Secure the panel using the appropriate fixing materials.
6. Continue installing the panels until the required fence length has been reached.
7. Check the alignment and secure fixing of all panels and posts.

Technical Specifications

Frequently Asked Questions

What are the dimensions of the double wire fence panel?

The panel is 143cm high and 251cm wide. The standard panel width is 251cm.

What is the mesh size?

The mesh size is 50x200mm. The horizontal wires are 2 x Ø6mm and the vertical wire is Ø5mm.

Is the panel hot-dip galvanised?

Yes, the panel is hot-dip galvanised according to EN ISO 1461. It is subsequently finished with a polyester powder coating.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Is the double wire fence panel supplied as a complete set?

Yes, the panel is supplied as a complete set with the fence panel, post and fixing materials. This provides the main components required for installation.

Are different heights available?

Yes, double wire fence panels are available in heights from 63cm to 243cm. Other formats, mesh sizes and lengths can also be supplied on request.

Can I add a matching fence gate?

Yes, matching fence gates are available as an option. A gate can be incorporated into the double wire fencing to provide convenient access.

Double Wire Fence Panel 143x251cm for a Complete Fence

The Double Wire Fence Panel 143x251cm allows you to create a consistent fence around a garden, property or outdoor area. The hot-dip galvanised and powder coated panel is supplied as a complete set with the fence panel, post and fixing materials. With available heights from 63cm to 243cm and other formats, mesh sizes and lengths available on request, the system can be adapted to different fencing projects. A matching fence gate is also available as an option.

For additional components, you can combine the panels with suitable wire fence panel posts to create a complete fencing system.
