Double Wire Fence Panel 223x251cm

Double Wire Fence Panel 223x251cm Hot-Dip Galvanised

The double wire fence panel 223x251cm is a practical solution for creating a high, structured fence around gardens, properties and other outdoor areas. The panel is hot-dip galvanised according to EN ISO 1461 and has a mesh size of 50x200mm. The complete set consists of a fence panel, post and fixing materials, allowing you to create a complete section of double wire fencing.

With a height of 223cm and a standard width of 251cm, this panel is suitable when you are looking for a high fence while retaining the open appearance of wire fencing. The construction consists of two horizontal wires with a diameter of 6mm and one vertical wire with a diameter of 5mm.

Advantages of the double wire fence panel 223x251cm

• Height of 223cm and width of 251cm
• Hot-dip galvanised according to EN ISO 1461
• Mesh size of 50x200mm
• Two horizontal wires with a diameter of 6mm
• One vertical wire with a diameter of 5mm
• Complete set with fence panel, post and fixing materials
• Available in several standard colours
• 25-year warranty

Complete double wire fence set

Our double wire fence panels are supplied as complete sets consisting of a fence panel, matching post and fixing materials. The standard panel width is 251cm. View the full range of double wire fence panels for other available heights and versions.

Hot-dip galvanised according to EN ISO 1461

The panel is hot-dip galvanised according to EN ISO 1461. The galvanised finish is an important part of the product specification and makes this panel suitable for use as part of an outdoor metal fencing system.

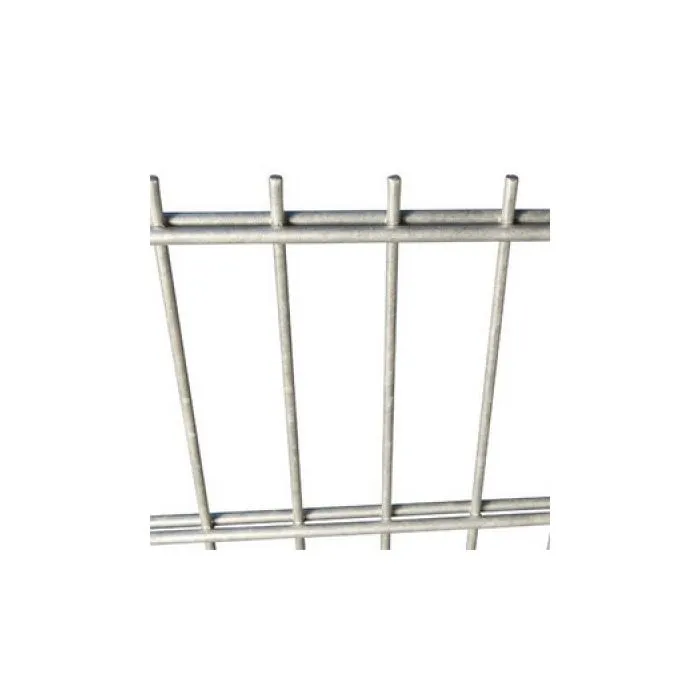

Mesh size and wire diameter

The mesh size is 50x200mm. The panel consists of two horizontal wires with a diameter of 6mm and one vertical wire with a diameter of 5mm. This combination forms the characteristic construction of a double wire fence panel.

223cm high and 251cm wide

This version has a height of 223cm and a width of 251cm. Double wire fence panels are available in various heights from 63cm up to 243cm, allowing you to choose a fence height that suits your requirements.

Other formats, mesh sizes and lengths are available on request. The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours can also be supplied on request.

Posts, accessories and gates

For a complete fencing system, the double wire fence panel can be combined with matching wire fence posts and wire fence accessories. A matching fence gate is also available as an optional addition.

How to install a double wire fence panel

1. Determine the desired line of the fence.
2. Mark the positions of the posts, taking into account the 251cm panel width.
3. Install the posts and check their alignment.
4. Position the double wire fence panel between the posts.
5. Secure the panel using the supplied fixing materials.
6. Check that the panel is correctly aligned before continuing with the next section.

Complete your double wire fence system

The double wire fence panel 223x251cm can be combined with matching posts, accessories and a suitable gate to create a complete fencing system. For other post solutions for wire panel systems, you can also view the wire fence panel posts.

Frequently asked questions

What are the dimensions of this double wire fence panel?

The panel is 223cm high and 251cm wide. This makes it suitable for creating a high fence using panels with a standard width of 251cm.

What is the mesh size?

The mesh size is 50x200mm. The panel has two horizontal wires with a diameter of 6mm and one vertical wire with a diameter of 5mm.

Is the double wire fence panel galvanised?

Yes, the panel is hot-dip galvanised according to EN ISO 1461. The hot-dip galvanised finish is part of the product specification.

What is included with the double wire fence panel?

The complete set includes the fence panel, a post and fixing materials. The components can therefore be used together to create a complete section of fencing.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Are other sizes available?

Yes, other formats, mesh sizes and lengths are available on request. Double wire fence panels are also available in different heights from 63cm to 243cm.

Can the fence be fitted with a gate?

Yes, matching fence gates are available as an optional addition. This allows you to create an access point within the double wire fence.

How long is the warranty?

The double wire fence panel comes with a 25-year warranty.

Double Wire Fence Panel 223x251cm for a complete fence

The double wire fence panel 223x251cm combines a height of 223cm with a standard width of 251cm and a mesh size of 50x200mm. The panel is hot-dip galvanised according to EN ISO 1461 and supplied as a complete set with a post and fixing materials. With matching posts, accessories and an optional gate, you can create a complete double wire fencing system tailored to your requirements.
