Double Wire Fence Panel 63x251cm

Double Wire Fence Panel 63x251cm Hot-Dip Galvanized

The double wire fence panel 63x251cm is a practical solution for creating a clear and structured boundary around gardens, properties and other outdoor areas. The panel has a width of 251cm, a height of 63cm and a mesh size of 50 x 200mm. It features two horizontal wire rods of 6mm diameter and one vertical wire rod of 5mm diameter. The panel is hot-dip galvanized according to EN ISO 1461. Double wire fence panels are supplied as a complete set consisting of the mesh panel, post and mounting material, with a standard width of 251cm.

Key Benefits

• Panel size: 63 x 251cm
• Mesh size: 50 x 200mm
• Horizontal wire rods: 2 x Ø 6mm
• Vertical wire rods: 1 x Ø 5mm
• Hot-dip galvanized: according to EN ISO 1461
• Complete set: panel, post and mounting material
• Available heights: from 63cm to 243cm
• 25-year warranty

Double Wire Fence Panel 63x251cm for Garden and Property Boundaries

The 63x251cm double wire fence panel is designed for applications where a defined boundary is required around an outdoor area. With a height of 63cm and a standard width of 251cm, the panel can be used to create a low fence or boundary around gardens, paths and other areas.

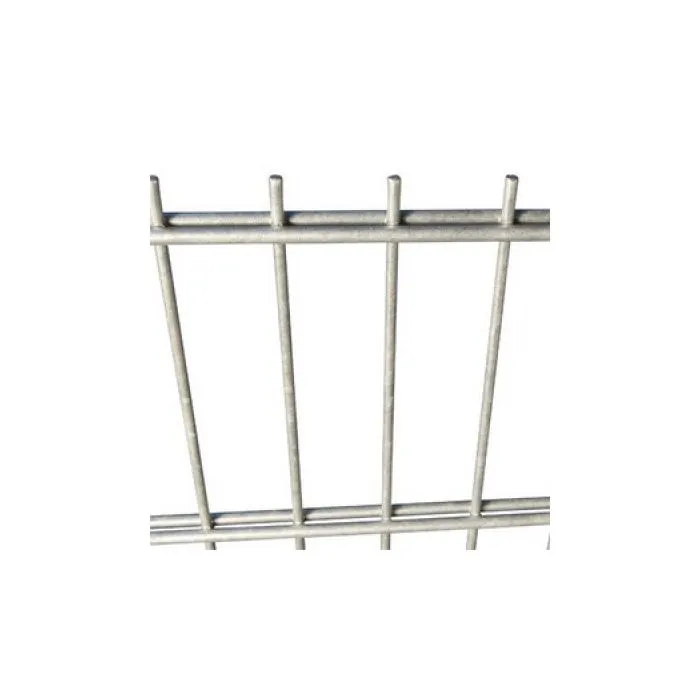

The rectangular 50 x 200mm mesh provides the characteristic appearance of a double wire fence. The panel consists of horizontal and vertical wire rods with the specified diameters, creating a structured mesh panel that can be combined with matching posts and mounting materials.

Hot-Dip Galvanized Finish

The double wire fence panel is hot-dip galvanized according to EN ISO 1461. This is the specified finish for the panel. Standard colours are available in RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

When selecting your fence, consider the required height, length and colour of the complete fence. Other panel formats, mesh sizes and lengths can also be supplied on request.

Technical Specifications

Complete Set with Post and Mounting Material

The double wire fence panels are sold as a complete set consisting of the mesh panel, post and mounting material. This provides the main components required for installing the fence panel together in one set.

The standard panel width is 251cm. When planning a complete fence, take the total fence length into account and determine how many panels are required. The required posts and mounting materials should also be included in the planning.

Available Heights and Other Options

This model has a height of 63cm. Other heights from 63cm up to 243cm are available. This allows you to select a suitable fence height according to the intended application.

Other formats, mesh sizes and lengths are available on request. Other colours are also available on request in addition to the standard RAL colours.

Garden Gates for Double Wire Fencing

A matching garden gate is available as an optional addition. This can be used when you want to include an access point in your fence layout.

How Many Double Wire Fence Panels Do You Need?

The standard width of each double wire fence panel is 251cm. To determine the number of panels required, measure the total length of the area you want to fence and divide this by the panel width. Also take the position of corners, ends and any garden gate into account when planning the fence.

How-to: Planning Your Double Wire Fence

1. Measure the area: Measure the total length where you want to install the fence.
2. Choose the fence height: This panel is 63cm high, with other heights from 63cm to 243cm available.
3. Calculate the number of panels: Use the standard panel width of 251cm to determine how many panels are needed.
4. Plan the posts: Include the required posts and mounting material when planning the fence.
5. Choose the colour: Select one of the standard RAL colours or ask about other available colours.
6. Add a garden gate: If access is required, a suitable garden gate can be added as an option.

Frequently Asked Questions About the Double Wire Fence Panel 63x251cm

What are the dimensions of the double wire fence panel?

The double wire fence panel is 63cm high and 251cm wide.

What is the mesh size?

The mesh size is 50 x 200mm.

What are the wire diameters?

The panel has two horizontal wire rods with a diameter of 6mm and one vertical wire rod with a diameter of 5mm.

Is the double wire fence panel hot-dip galvanized?

Yes, the double wire fence panel is hot-dip galvanized according to EN ISO 1461.

Which colours are available?

The standard colours are RAL 6005, RAL 6009, RAL 7016 and RAL 9005. Other colours are available on request.

Is the panel supplied as a complete set?

Yes, the double wire fence panels are sold as a complete set consisting of the mesh panel, post and mounting material.

Are other fence heights available?

Yes, other heights from 63cm to 243cm are available.

Are matching garden gates available?

Yes, matching garden gates are available as an optional addition.

Order Double Wire Fence Panel 63x251cm

The double wire fence panel 63x251cm is a suitable choice when you are looking for a low, structured fence panel for a garden or outdoor area. The panel has a 50 x 200mm mesh, is hot-dip galvanized according to EN ISO 1461 and is supplied as a complete set with post and mounting material. Other heights, formats, mesh sizes, lengths and colours are available on request.
